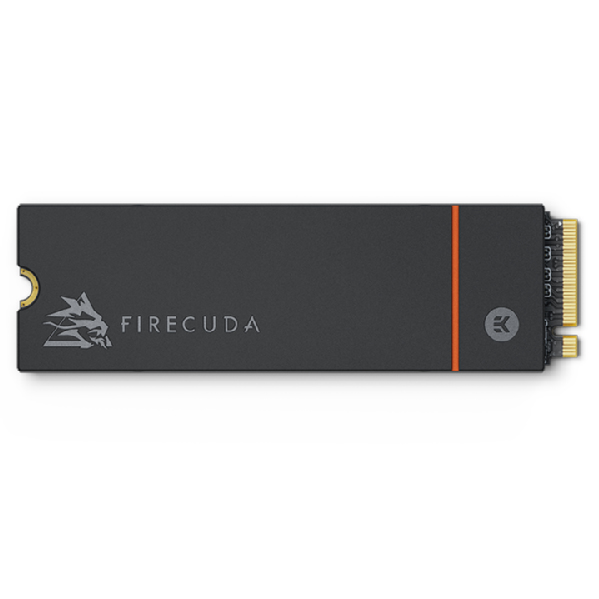

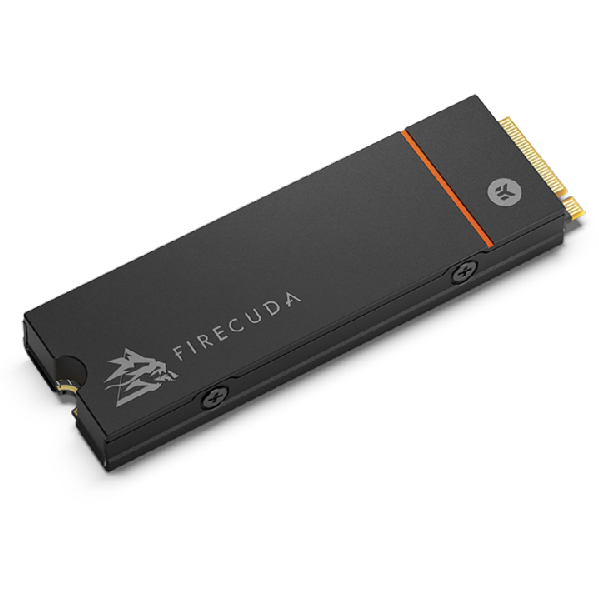

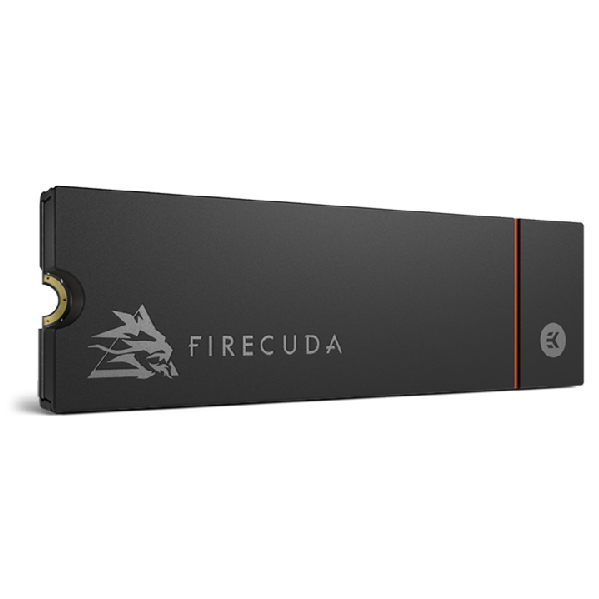

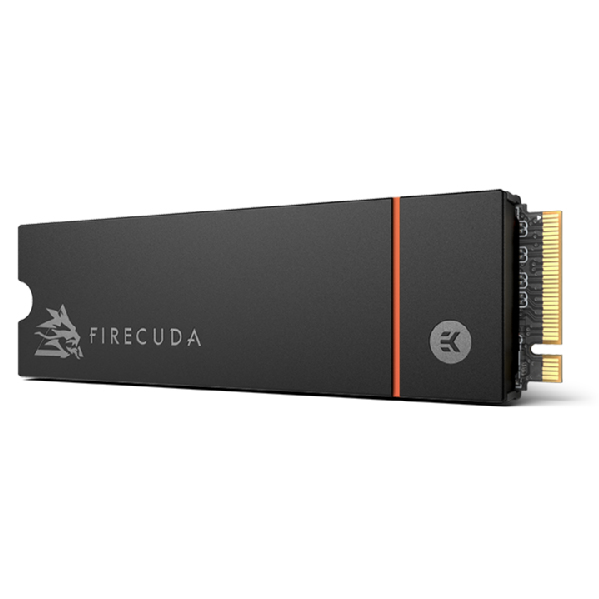

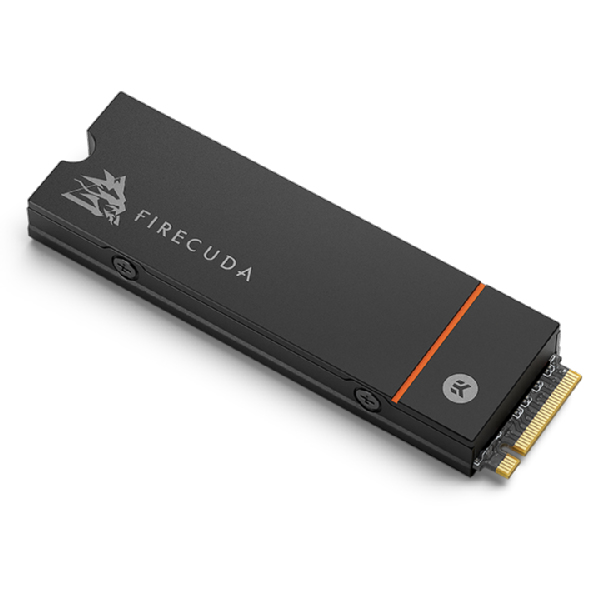

FireCuda ZP4000GM30023 internal solid state drive
4 TB M.2 PCI Express 4.0 NVMe 3D TLC
Model ZP4000GM30023
36 specifications
- Storage4 TB
- ConnectivityPCI Express 4.0
- Weight47 g
- Power consumption (average)8.6 W
- Width22.1 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 4 TB
- Connectivity
- PCI Express 4.0
- Weight
- 47 g
- Power consumption (average)
- 8.6 W
- Width
- 22.1 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Seagate
- Category
- Internal Solid State Drive
- Model
- ZP4000GM30023
- Part number
- ZP4000GM30023
- Also known as
- Seagate FireCuda ZP4000GM30023 internal solid state drive 4 TB M.2 PCI Express 4.0 NVMe 3D TLC
Specifications
36 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 4 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| NVMe version | 1.4 |
| Memory type | 3D TLC |

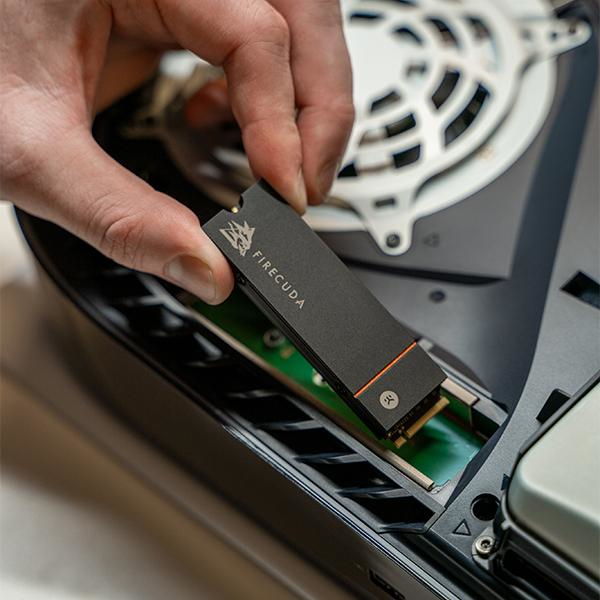

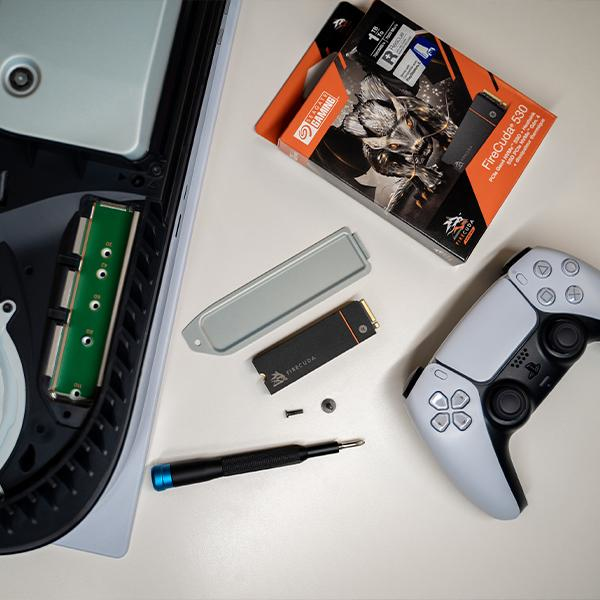

| Component for | Game console |
| Read speed | 7250 MB/s |
| Write speed | 6900 MB/s |
| Random read (4KB) | 1000000 IOPS |
| Random write (4KB) | 1000000 IOPS |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 1800000 h |
| Windows operating systems supported | Windows 10 |
| TBW rating | 5100 |
Power
| Specification | Value |
|---|---|
| Power consumption (average) | 8.6 W |
| Power consumption (idle) | 30 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22.1 mm |
| Height | 11 mm |
| Weight | 47 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 109 mm |
| Package depth | 24 mm |
| Package height | 134.2 mm |
| Package weight | 0.062 g |
| Package type | Box |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Non-operating shock | 1500 G |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Technical details
| Specification | Value |
|---|---|
| Doesn't contain | Halogen |
Logistics data
| Specification | Value |
|---|---|
| Pallet net length | 1.219 mm |
| Pallet net weight | 47.5 kg |
| Pallet net width | 50.8 cm |
| Master (outer) cases per pallet | 48 pc(s) |
| Layers per pallet | 4 pc(s) |
