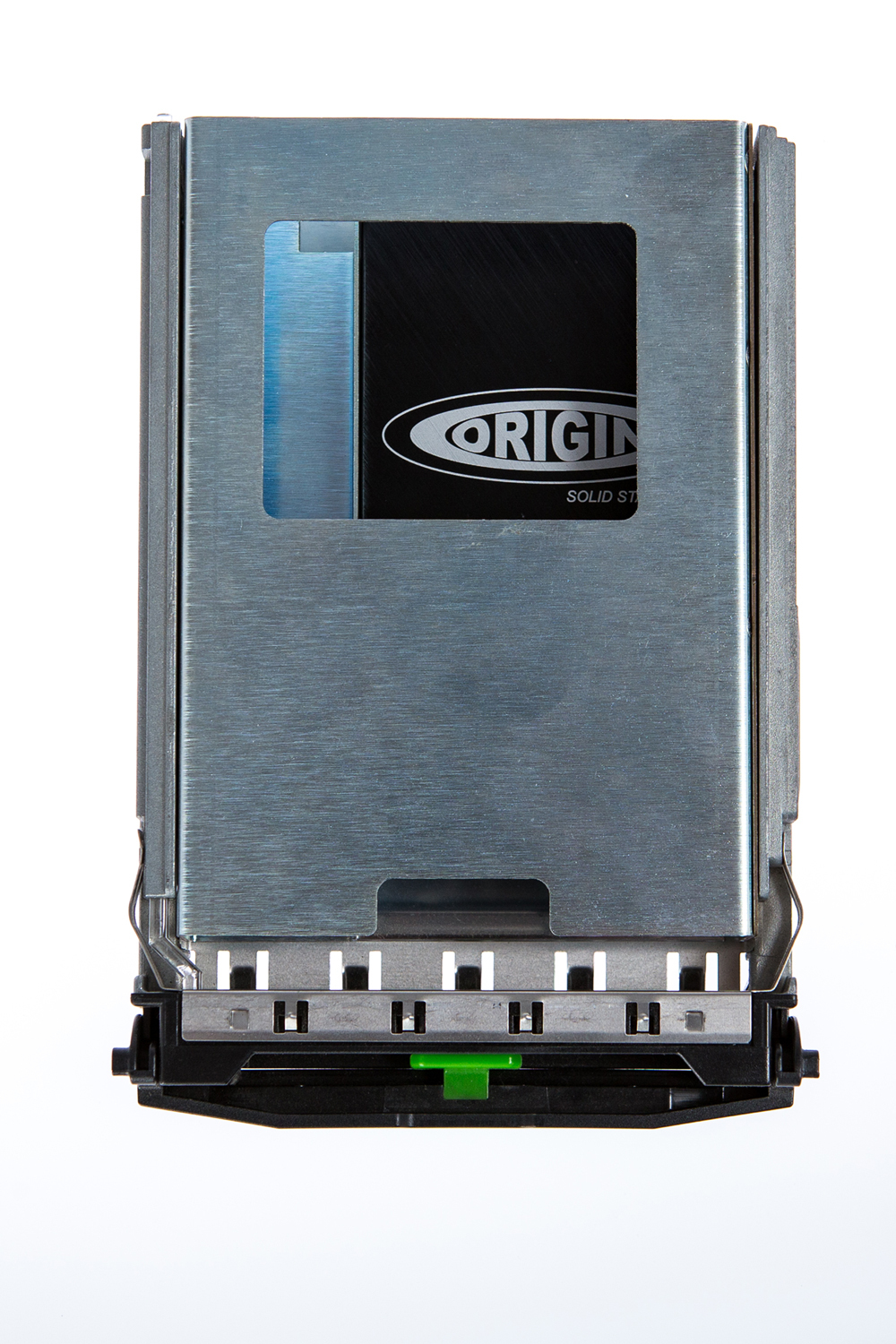

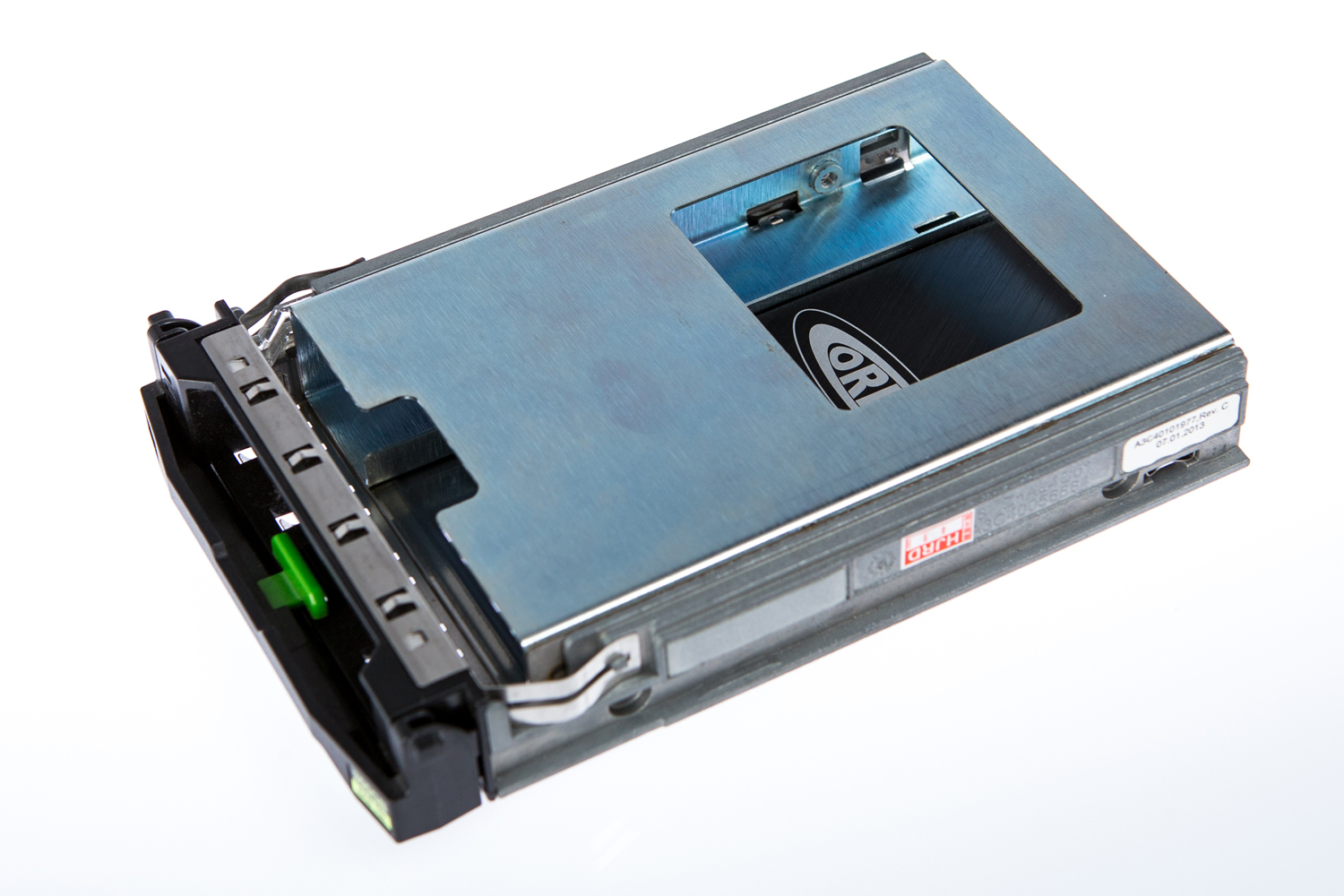

SSD 480GB 3.5in SATA MWL 3DWPD in Hot Swap Caddy
Model FUJ-480EMLCMWL-S5EAN 5056006108832
41 specifications
- Storage480 GB
- ConnectivitySerial ATA
- Operating voltage5 V
- Height7 mm
- Operating temperature (T-T)0 - 70 °C
Overview
- Storage
- 480 GB
- Connectivity
- Serial ATA
- Operating voltage
- 5 V
- Height
- 7 mm
- Operating temperature (T-T)
- 0 - 70 °C
- Brand
- Origin Storage
- Category
- Internal Solid State Drive
- Model
- FUJ-480EMLCMWL-S5
- Part number
- FUJ-480EMLCMWL-S5
- EAN / UPC
- 5056006108832, 5057454420996
- Also known as
- Origin Storage SSD 480GB 3.5in SATA MWL 3DWPD in Hot Swap Caddy
Specifications
41 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 480 GB |
| SSD form factor | 3.5" |
| Interface | Serial ATA |
| NVMe | No |
| Memory type | TLC |
| NAND flash type | eMLC (Enterprise Multi Level Cell) |
| Component for | Server/workstation |
| Hardware encryption | No |
| Security algorithms | 256-bit AES |
| Data transfer rate | 6 Gbit/s |
| Read speed | 560 MB/s |
| Write speed | 510 MB/s |
| Random read (4KB) | 95000 IOPS |
| Random write (4KB) | 19000 IOPS |
| Read latency | 110 µs |
| Write latency | 110 µs |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Active garbage collection | Yes |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Operating voltage | 5 V |
| Power consumption (read) | 2.3 W |
| Power consumption (write) | 2.8 W |
| Power consumption (average) | 2.8 W |
| Power consumption (idle) | 1.3 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 7 mm |
Packaging data
| Specification | Value |
|---|---|
| Storage drive adapter included | Yes |
| Storage drive adapter type | 2.5" - 3.5" |
| Downloadable software | Samsung SSD DC Toolkit |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating vibration | 20 G |
| Non-operating vibration | 20 G |
| Operating shock | 1500 G |
| Non-operating shock | 1500 G |
Other features
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Compatible products | Fujitsu Server |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84717070 |
