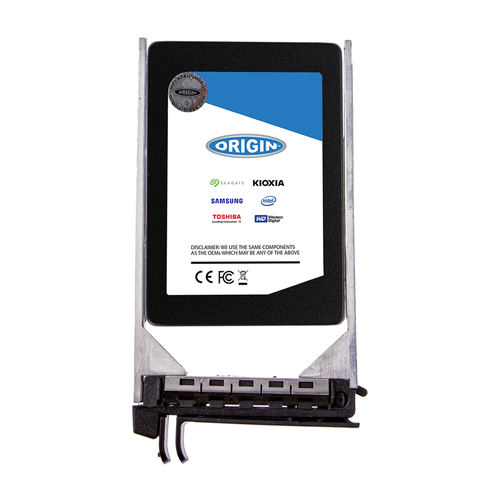

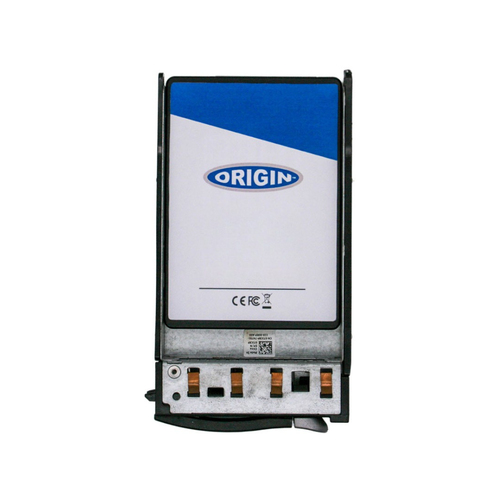

Origin Storage SSD 480GB 2.5in SATA RI 1DWPD in Hot Swap Caddy

Origin Storage SSD 480GB 2.5in SATA RI 1DWPD in Hot Swap Caddy

Model DELL-480EMLCRI-S14EAN 5056006107019

45 specifications

Storage480 GB
ConnectivitySerial ATA
Weight60 g
Power consumption (average)3 W
Width69.8 mm
Operating temperature (T-T)0 - 70 °C

See all specifications

Overview

Storage: 480 GB
Connectivity: Serial ATA
Weight: 60 g
Power consumption (average): 3 W
Width: 69.8 mm
Operating temperature (T-T): 0 - 70 °C

Brand: Origin Storage
Category: Internal Solid State Drive
Model: DELL-480EMLCRI-S14
Part number: DELL-480EMLCRI-S14
EAN / UPC: 5056006107019, 5059902177070
Also known as: Origin Storage SSD 480GB 2.5in SATA RI 1DWPD in Hot Swap Caddy

Specifications

45 specifications in 7 groups

Features

Specification	Value
SSD capacity	480 GB
SSD form factor	2.5"
Interface	Serial ATA
NVMe	No
Memory type	TLC
NAND flash type	MLC (Multi Level Cell)
Component for	Server/workstation
Hardware encryption	No
Security algorithms	256-bit AES
Data transfer rate	6 Gbit/s
Read speed	500 MB/s
Write speed	500 MB/s
Maximum read (4KB)	97000 IOPS
Maximum write (4KB)	16000 IOPS
Random read (4KB)	97000 IOPS
Random write (4KB)	16000 IOPS
Random read (8KB)	55000 IOPS
Random write (8KB)	11000 IOPS
Access time	0.1 ms
Read latency	130 µs
Write latency	130 µs
RAID support	Yes
S.M.A.R.T. support	Yes
TRIM support	Yes
Hot-swap	Yes
Mean time between failures (MTBF)	2000000 h
Windows operating systems supported	Yes
Linux operating systems supported	Yes

Power

Specification	Value
Power consumption (average)	3 W

Weight & dimensions

Specification	Value
Width	69.8 mm
Depth	100.5 mm
Height	7 mm
Weight	60 g

Packaging data

Specification	Value
Storage drive adapter included	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Operating vibration	20 G
Non-operating vibration	20 G
Operating shock	1500 G
Non-operating shock	1500 G

Other features

Specification	Value
Internal	Yes
Compliance certificates	RoHS
Compatible products	Dell Server

Logistics data

Specification	Value
Harmonized System (HS) code	84717070
