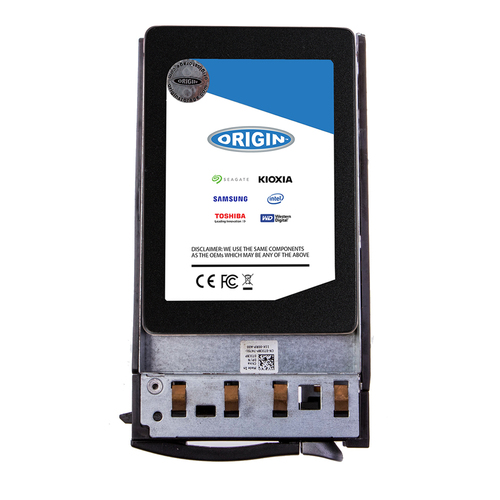

Origin Storage SSD 480GB 3.5in SATA MWL 3DWPD in Hot Swap Caddy

Origin Storage SSD 480GB 3.5in SATA MWL 3DWPD in Hot Swap Caddy

Model DELL-480EMLCMWL-S7EAN 5056006106418

44 specifications

Storage480 GB
ConnectivitySerial ATA
Operating voltage5 V
Height7 mm
Operating temperature (T-T)0 - 70 °C

See all specifications

Overview

Storage: 480 GB
Connectivity: Serial ATA
Operating voltage: 5 V
Height: 7 mm
Operating temperature (T-T): 0 - 70 °C

Brand: Origin Storage
Category: Internal Solid State Drive
Model: DELL-480EMLCMWL-S7
Part number: DELL-480EMLCMWL-S7
EAN / UPC: 5056006106418
Also known as: Origin Storage SSD 480GB 3.5in SATA MWL 3DWPD in Hot Swap Caddy

Specifications

44 specifications in 7 groups

Features

Specification	Value
SSD capacity	480 GB
SSD form factor	3.5"
Interface	Serial ATA
NVMe	No
Memory type	eMLC
NAND flash type	MLC (Multi Level Cell)
Component for	Server/workstation
Hardware encryption	No
Security algorithms	256-bit AES
Data transfer rate	6 Gbit/s
Read speed	520 MB/s
Write speed	500 MB/s
Random read (4KB)	95000 IOPS
Random write (4KB)	19000 IOPS
Access time	0.1 ms
Read latency	110 µs
Write latency	110 µs
S.M.A.R.T. support	Yes
TRIM support	Yes
Hot-swap	Yes
Mean time between failures (MTBF)	2000000 h
Active garbage collection	Yes
Windows operating systems supported	Yes
Linux operating systems supported	Yes

Power

Specification	Value
Operating voltage	5 V
Power consumption (read)	2.3 W
Power consumption (write)	2.8 W
Power consumption (average)	2.8 W
Power consumption (idle)	1.3 W

Weight & dimensions

Specification	Value
Height	7 mm

Packaging data

Specification	Value
Storage drive adapter included	Yes
Storage drive adapter type	2.5" - 3.5"
Downloadable software	Samsung SSD DC Toolkit

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating vibration	20 G
Non-operating vibration	20 G
Operating shock	1500 G
Non-operating shock	1500 G

Other features

Specification	Value
Internal	Yes
Compliance certificates	RoHS
HDD capacity	480 GB
Compatible products	Dell Server

Logistics data

Specification	Value
Harmonized System (HS) code	84717070
