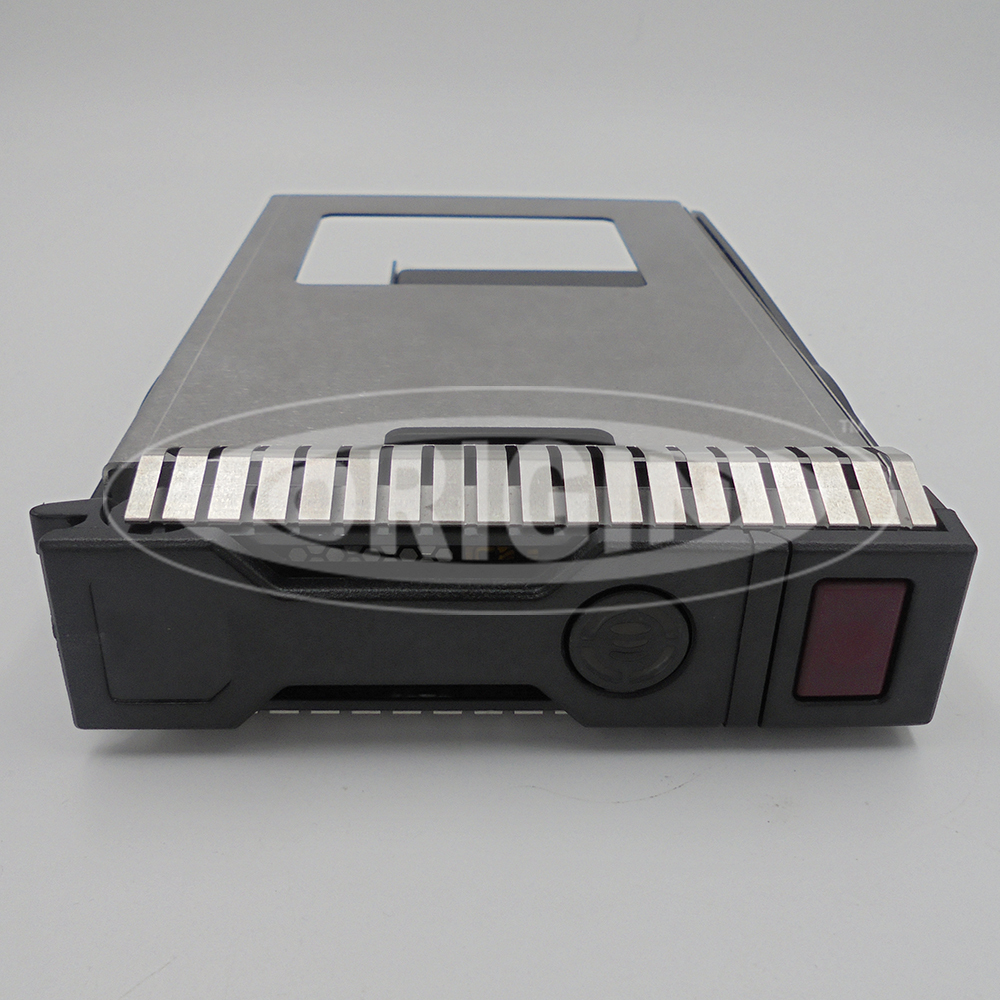

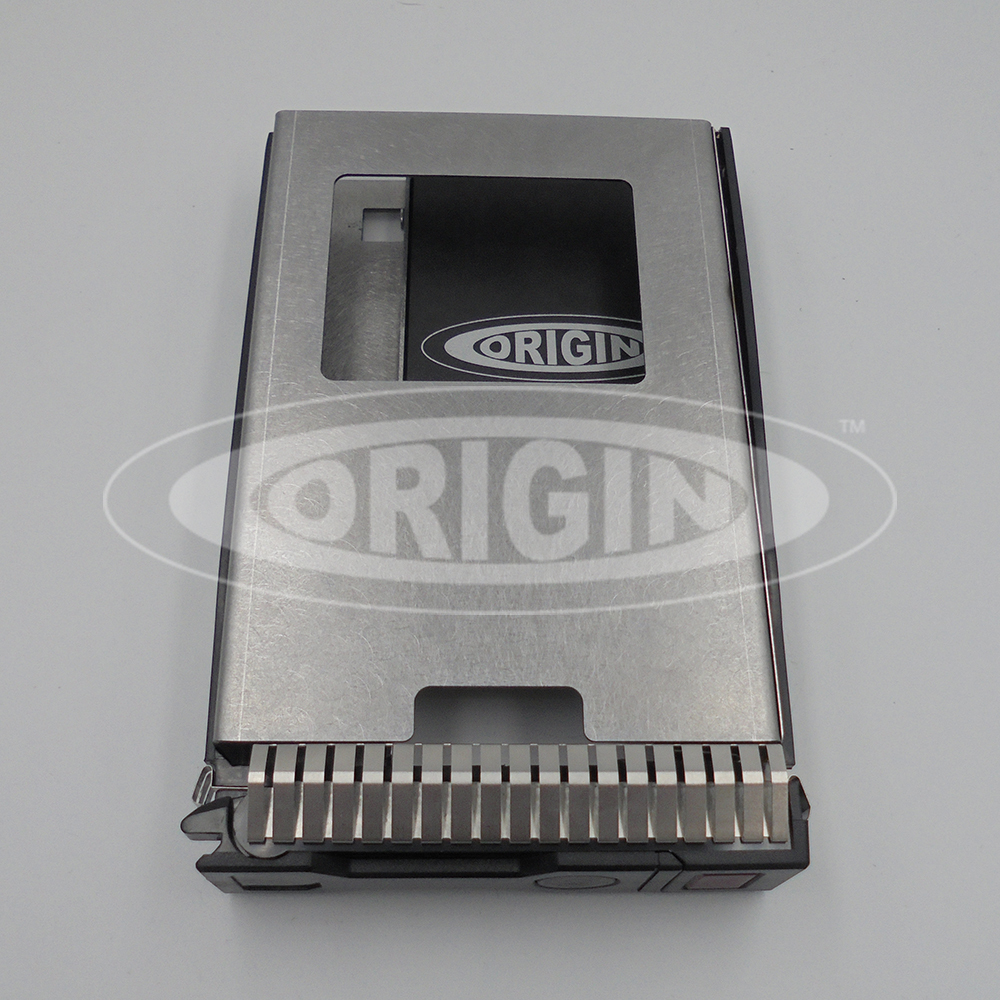

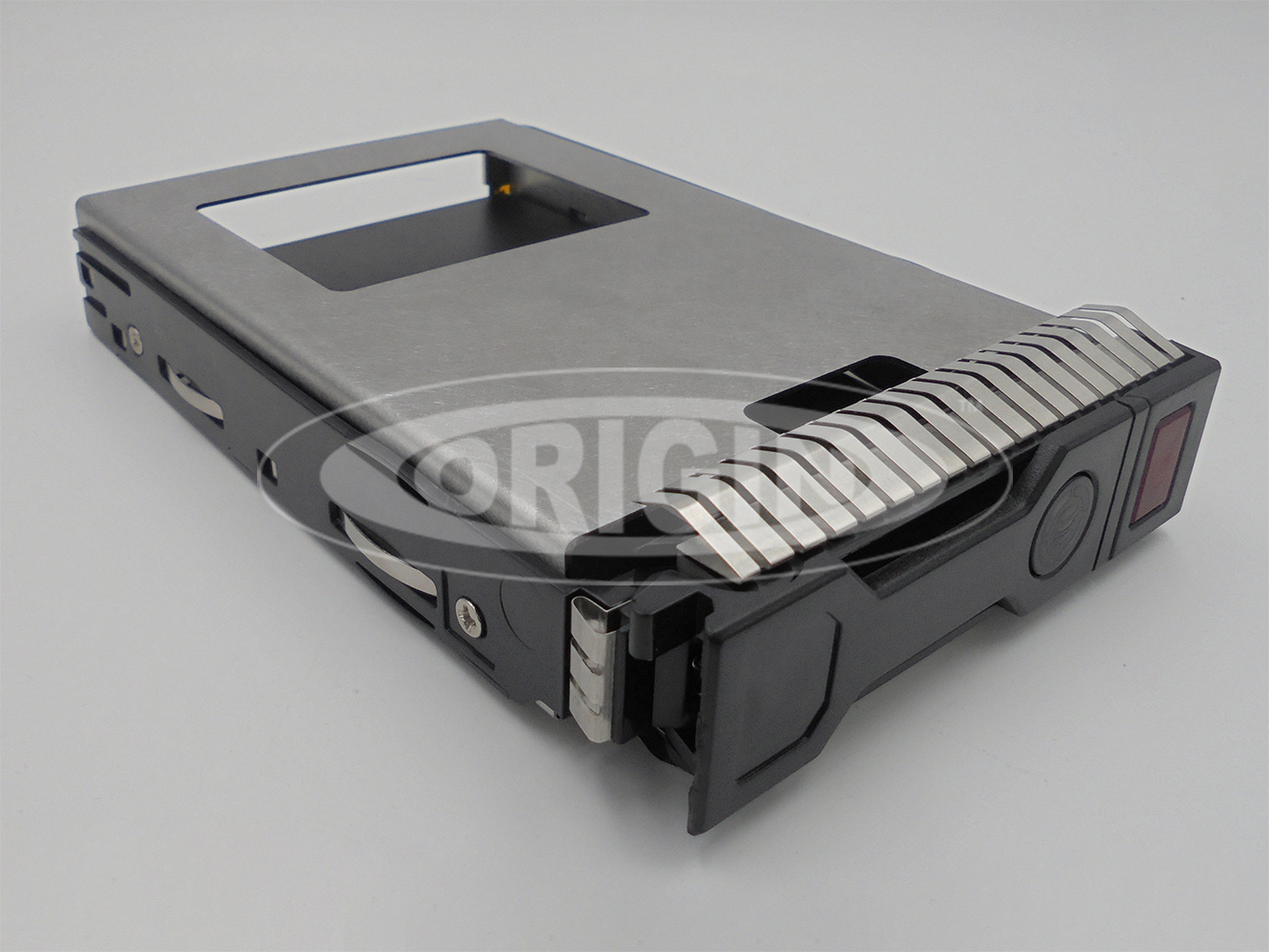

800GB 6G SATA VE SFF 3.5IN VALUE ENDURANCE SSD
Model 800GB 6G SATA VE SFF 3.5IN VALUE ENDURANCE SSDPart no. CPQ-800MLC-S8EAN 5056006117186
39 specifications
- Storage800 GB
- ConnectivitySerial ATA III
- Weight88 g
- Power consumption (average)4.74 W
- Intel High Endurance Technology (HET)No
- Width69.8 mm
Overview
- Storage
- 800 GB
- Connectivity
- Serial ATA III
- Weight
- 88 g
- Power consumption (average)
- 4.74 W
- Intel High Endurance Technology (HET)
- No
- Width
- 69.8 mm
- Brand
- Origin Storage
- Category
- Internal Solid State Drive
- Model
- 800GB 6G SATA VE SFF 3.5IN VALUE ENDURANCE SSD
- Part number
- CPQ-800MLC-S8
- EAN / UPC
- 5056006117186
- Also known as
- Origin Storage 800GB 6G SATA VE SFF 3.5in Value Endurance SSD
Specifications
39 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| SSD capacity | 800 GB |
| SSD form factor | 3.5" |
| Interface | Serial ATA III |
| NVMe | No |
| Memory type | MLC |
| NAND flash type | MLC (Multi Level Cell) |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Security algorithms | 256-bit AES |
| Data transfer rate | 6 Gbit/s |
| Read speed | 500 MB/s |
| Write speed | 460 MB/s |
| Random read (100% span) | 67000 IOPS |
| Random write (100% span) | 15300 IOPS |
| Read latency | 55 µs |
| Write latency | 66 µs |
| Lithography | 16 nm |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| End-to-End Data Protection | Yes |
| Enhanced Power Loss Data Protection technology | Yes |
| Native Command Queuing (NCQ) | Yes |
| SSD temperature monitoring | Yes |
| IEEE 1667 | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Opal SSC 2.0 | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (average) | 4.74 W |
| Power consumption (idle) | 0.7 W |
Brand-specific features
| Specification | Value |
|---|---|
| Intel High Endurance Technology (HET) | No |
| Intel® Smart Response Technology | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 69.8 mm |
| Depth | 100.5 mm |
| Height | 7 mm |
| Weight | 88 g |
Packaging data
| Specification | Value |
|---|---|
| Storage drive adapter included | Yes |
| Storage drive adapter type | 2.5" - 3.5" |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating shock | 1000 G |
| Non-operating shock | 1000 G |
