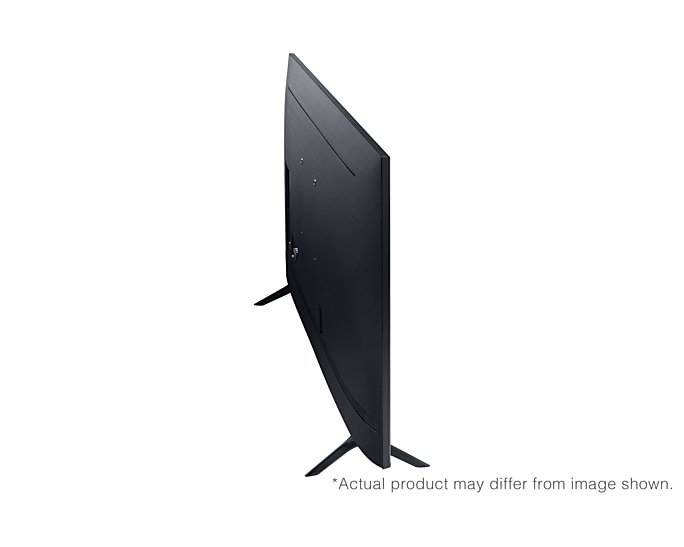

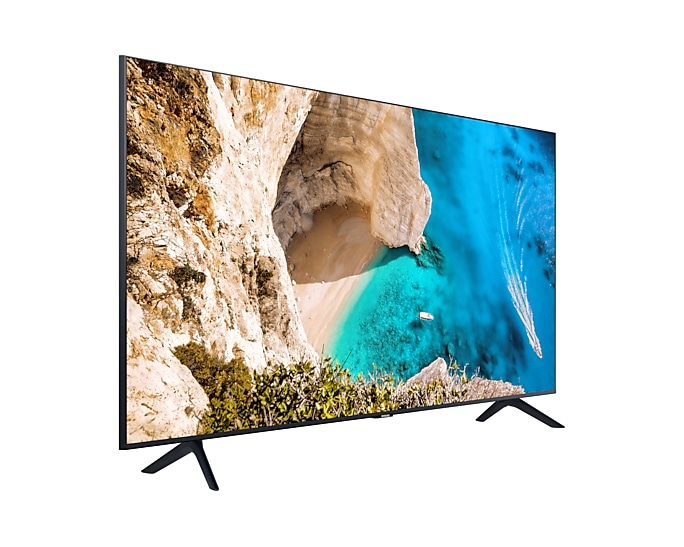

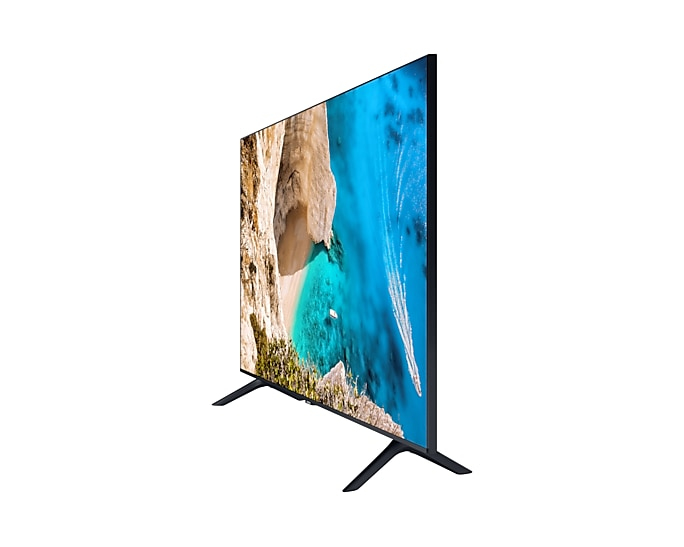

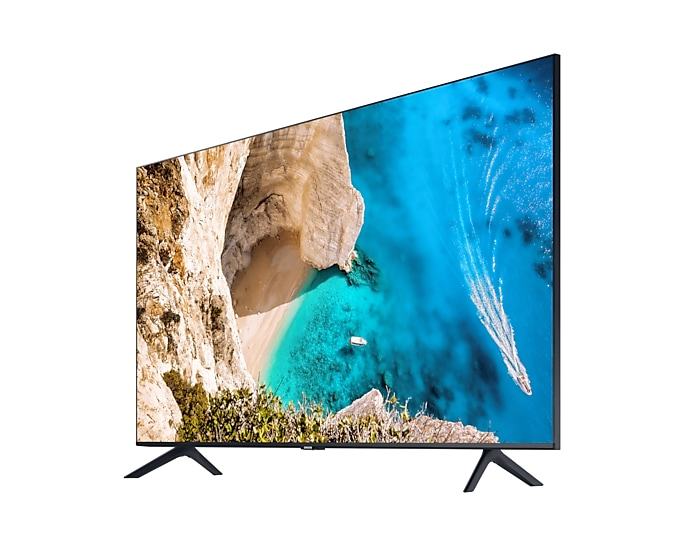

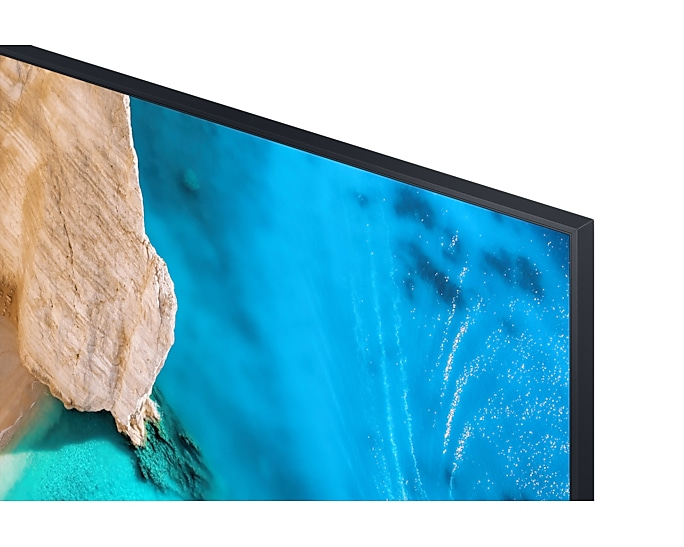

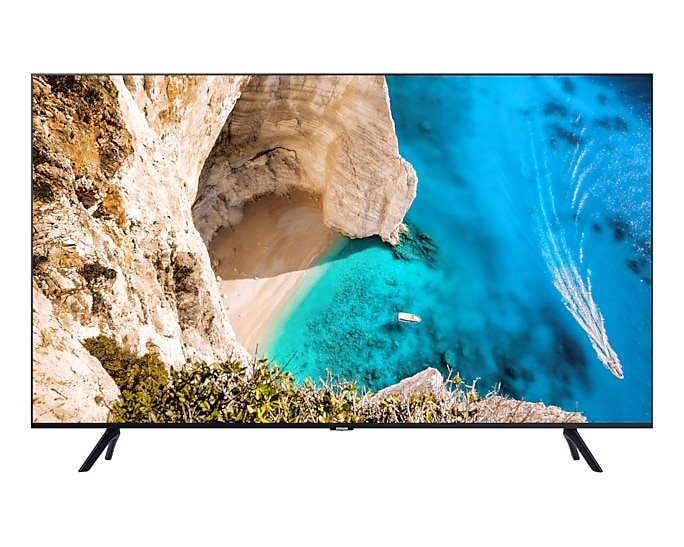

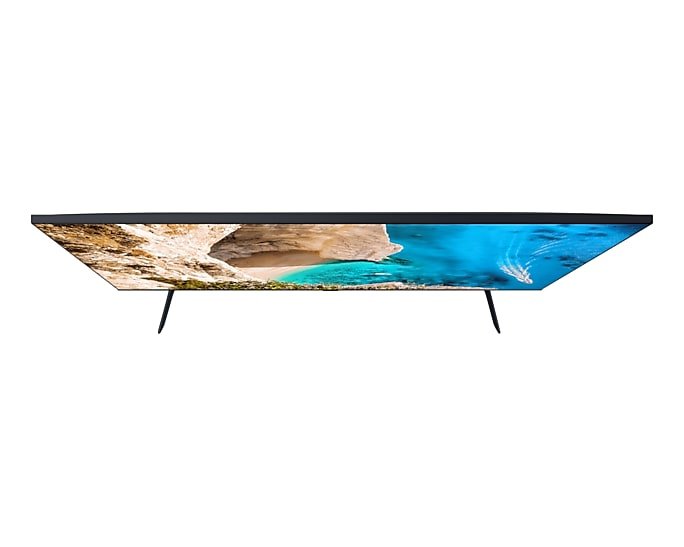

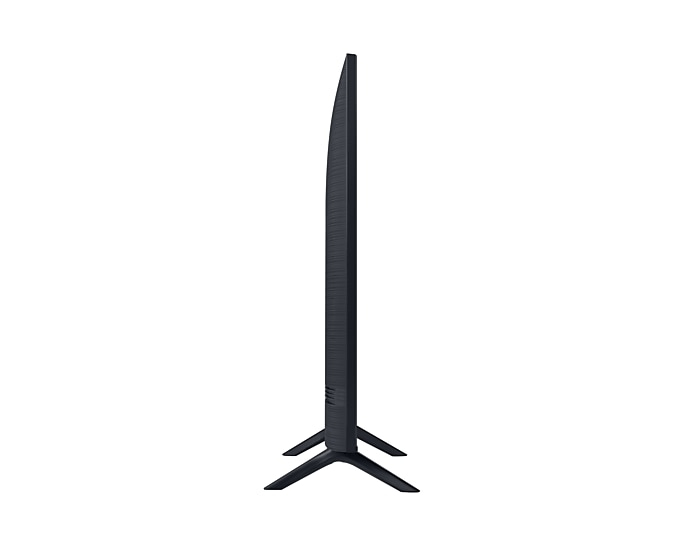

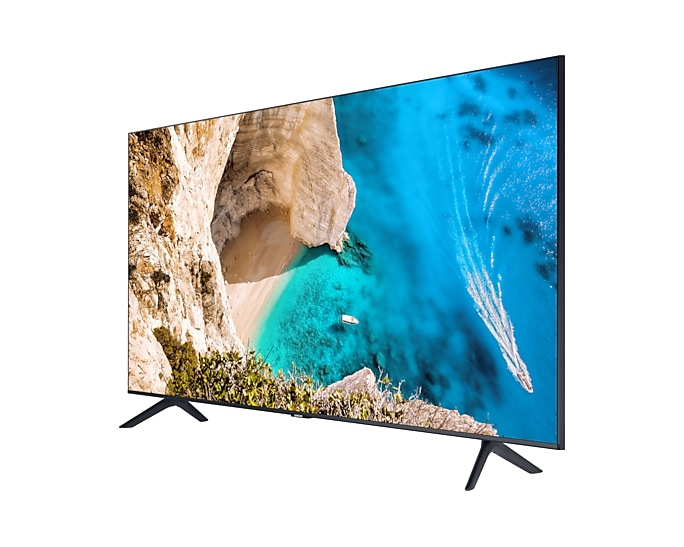

HG65AT690UKXZN hospitality TV
165.1 cm (65") 4K Ultra HD Smart TV Black 20 W
Model HG65AT690UKXZN
70 specifications
- Display165.1 cm (65")
- Resolution3840 x 2160 pixels
- ColourBlack
- Smart TVYes
- HDMI ports quantity3
- RMS rated power20 W
Overview
- Display
- 165.1 cm (65")
- Resolution
- 3840 x 2160 pixels
- Colour
- Black
- Smart TV
- Yes
- HDMI ports quantity
- 3
- RMS rated power
- 20 W
- Brand
- Samsung
- Category
- Hospitality TV
- Model
- HG65AT690UKXZN
- Part number
- HG65AT690UKXZN
- Also known as
- Samsung HG65AT690UKXZN hospitality TV 165.1 cm (65") 4K Ultra HD Smart TV Black 20 W
Specifications
70 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 165.1 cm (65") |
| HD type | 4K Ultra HD |
| Display resolution | 3840 x 2160 pixels |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Supported graphics resolutions | 3840 x 2160 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 300 mm |
Performance
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Backlight dimming technology | Local Dimming |
| Electronic Programme Guide (EPG) | Yes |
| Auto power off | Yes |
| Sleep timer | Yes |
| ConnectShare (HDD) | Yes |
| ConnectShare (USB) | Yes |
| Game mode | Yes |
| Energy saving mode | Yes |
| Teletext function | Yes |
Hospitality features
| Specification | Value |
|---|---|
| Hospitality home menu | Yes |
| Hotel channel list | Yes |
| Hospitality Plug and Play | Yes |
| Welcome message | Yes |
| External clock compatibility | Yes |
| Clock back up supply | Yes |
| My Channel function | Yes |
| Music mode backlight on/off | Yes |
| USB cloning | Yes |
| Smoovie compatibility | Yes |
| Auto source mode | Yes |
| Soundbar compatibility | Yes |
| LYNK REACH version | 4.0 |
| Security mode | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| DVI port | No |
| USB 2.0 ports quantity | 2 |
| Audio (L/R) out | 1 |
| RF ports quantity | 2 |
| RJ-12 ports quantity | 1 |
Audio
| Specification | Value |
|---|---|
| RMS rated power | 20 W |
| Audio system | 2 CH |
| Audio decoders | Dolby Digital Plus |
Network
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Ethernet LAN | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 125 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 1449.4 mm |
| Depth (with stand) | 282.1 mm |
| Height (with stand) | 906.6 mm |
| Weight (with stand) | 21.4 kg |
| Width (without stand) | 1449.4 mm |
| Depth (without stand) | 59.9 mm |
| Height (without stand) | 830.3 mm |
| Weight (without stand) | 21.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1606 mm |
| Package depth | 282.1 mm |
| Package height | 963 mm |
| Package weight | 29.5 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | TM1240A |
| Cables included | AC |
| Mounting kit | Yes |
| Desktop stand | Yes |
TV tuner
| Specification | Value |
|---|---|
| Tuner type | Analog |
| Digital signal format system | ATSC, DVB-T |
| Auto channel search | Yes |
