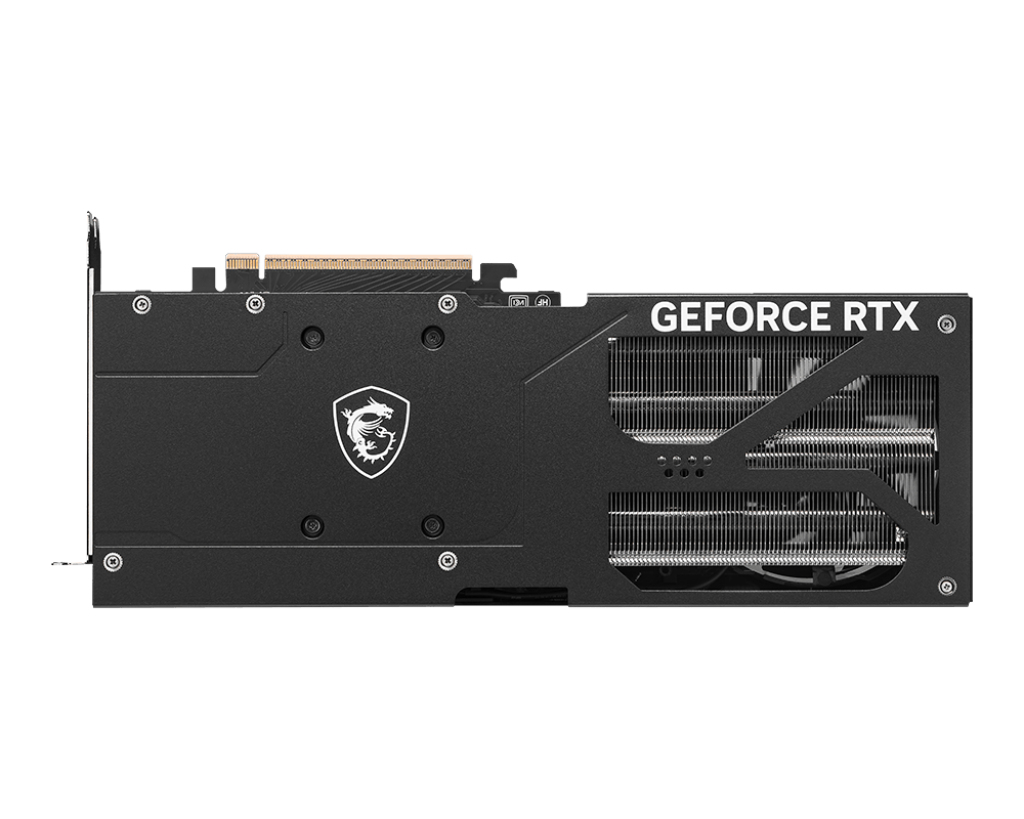

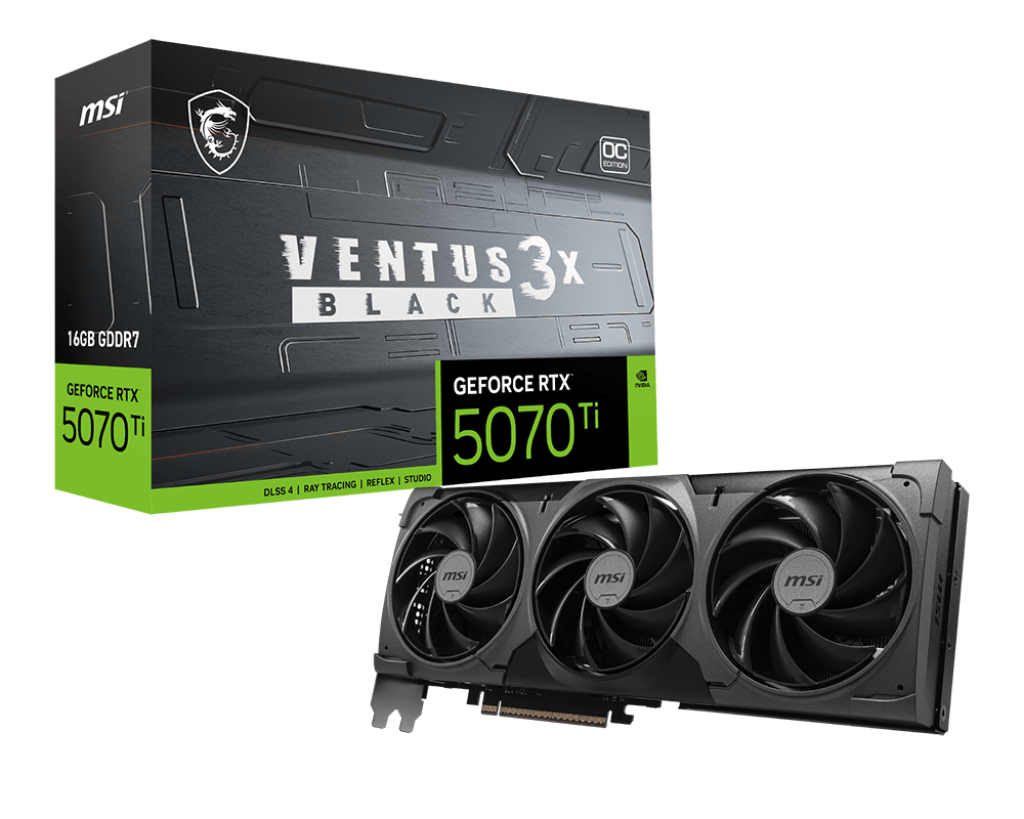

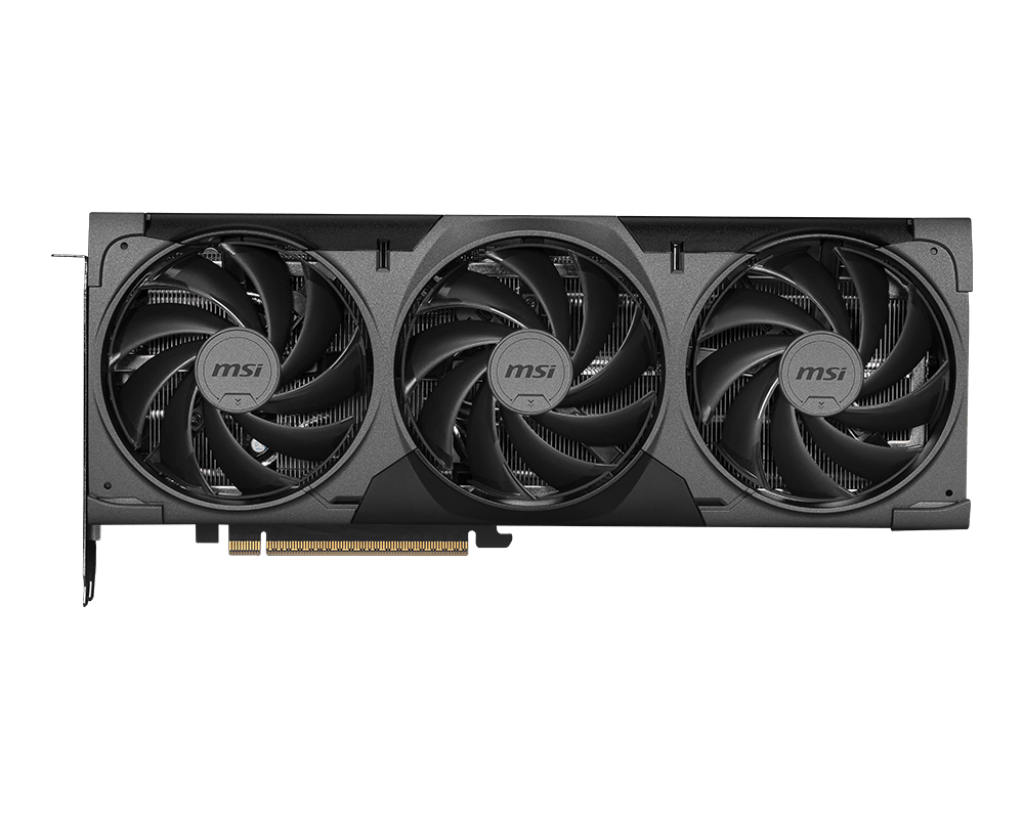

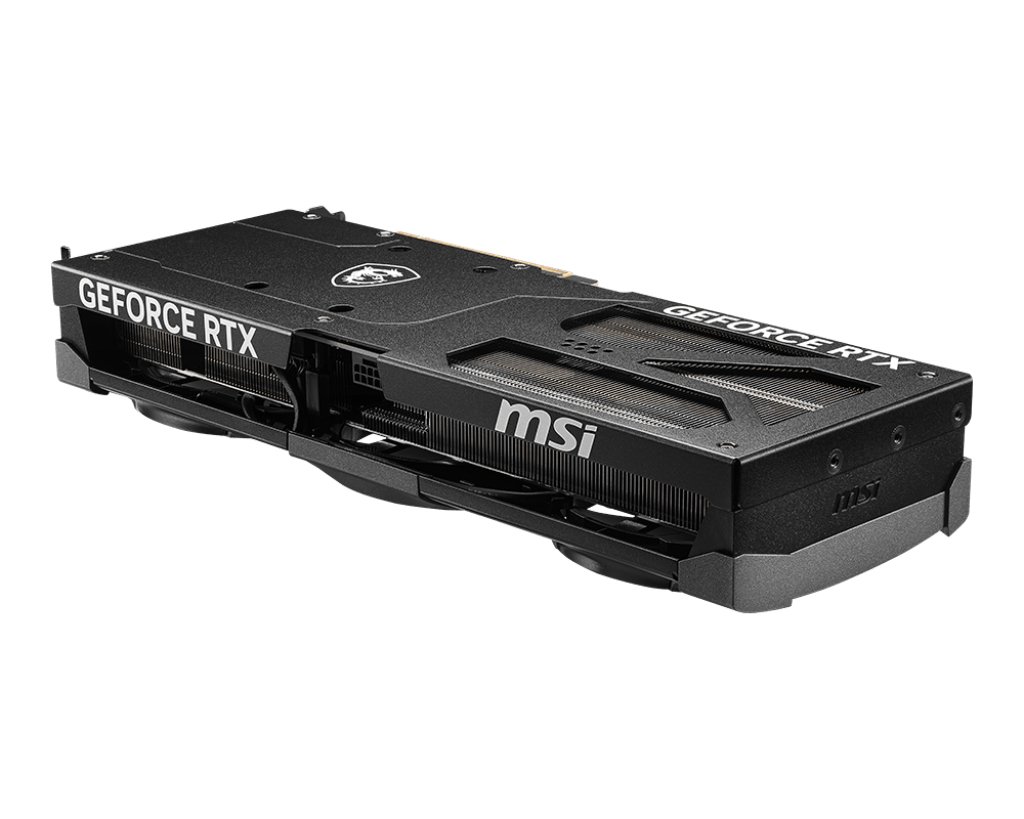

GeForce RTX 5070 Ti 16G VENTUS 3X OC BLACK
Model GeForce RTX 5070 Ti 16G VENTUS 3X OC BLACKPart no. GEFORCE RTX 5070 TI 16G VENTUS 3X OC BLACKEAN 824142445006
41 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.07 kg
- ColourAluminium, Black
- Graphics processor familyNVIDIA
- Discrete graphics card memory16 GB
- Interface typePCI Express 5.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.07 kg
- Colour
- Aluminium, Black
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express 5.0
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX 5070 Ti 16G VENTUS 3X OC BLACK
- Part number
- GEFORCE RTX 5070 TI 16G VENTUS 3X OC BLACK
- EAN / UPC
- 824142445006
- Also known as
- MSI GeForce RTX 5070 Ti 16G VENTUS 3X OC BLACK NVIDIA 16 GB GDDR7
Specifications
41 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5070 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 8960 |
| Processor boost clock speed | 2482 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |

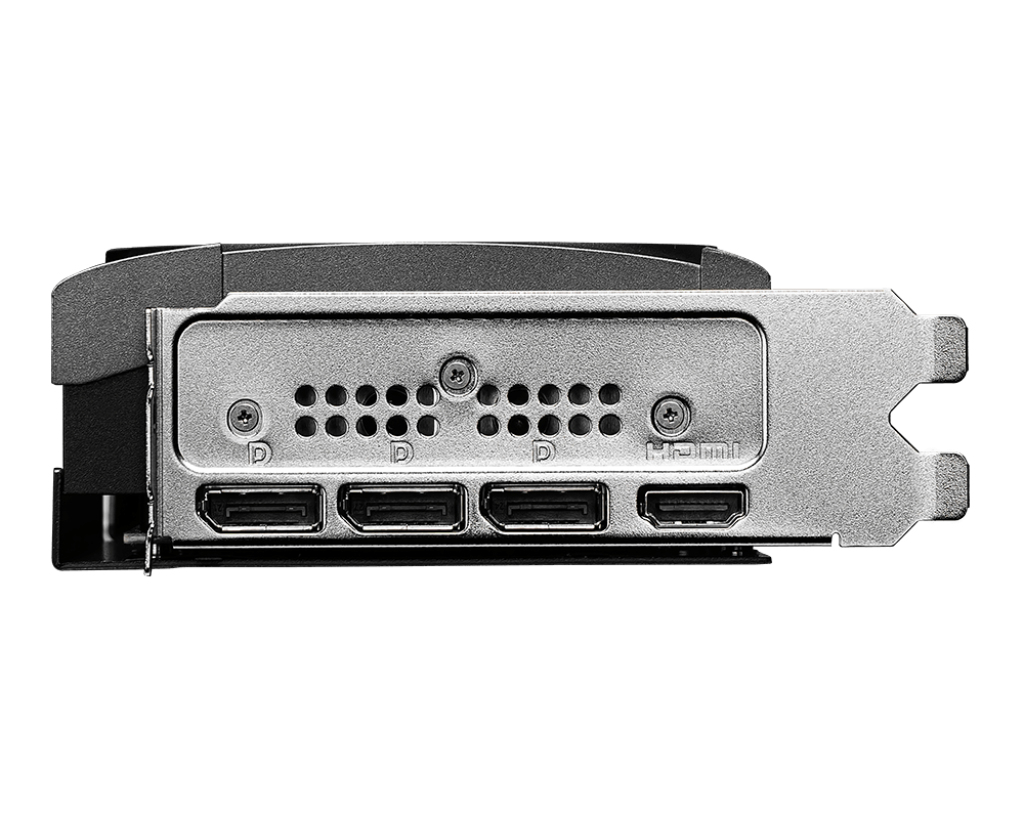

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| Micro HDMI ports quantity | 0 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1b |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Overclocked (OC) edition | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Product colour | Aluminium, Black |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Power consumption (typical) | 300 W |
| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.07 kg |
| Length | 303 mm |
| Depth | 49 mm |
| Height | 121 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.57 kg |
| Package type | Box |
