GeForce RTX 5060 Ti 8G GAMING TRIO OC WHITE
Model GeForce RTX 5060 Ti 8G GAMING TRIO OC WHITEPart no. GEFORCE RTX 5060 TI 8G GAMING TRIO OC WHITEEAN 824142422120
47 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight839 g
- ColourWhite
- Graphics processor familyNVIDIA
- Discrete graphics card memory8 GB
- Interface typePCI Express x16 5.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 839 g
- Colour
- White
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 8 GB
- Interface type
- PCI Express x16 5.0
- Brand
- MSI
- Category
- GPU
- Model
- GeForce RTX 5060 Ti 8G GAMING TRIO OC WHITE
- Part number
- GEFORCE RTX 5060 TI 8G GAMING TRIO OC WHITE
- EAN / UPC
- 824142422120
- Also known as
- MSI GeForce RTX 5060 Ti 8G GAMING TRIO OC WHITE NVIDIA 8 GB GDDR7
Specifications
47 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 4608 |
| Processor boost clock speed | 2647 MHz |
| Maximum displays per videocard | 4 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Data transfer rate | 28 Gbit/s |

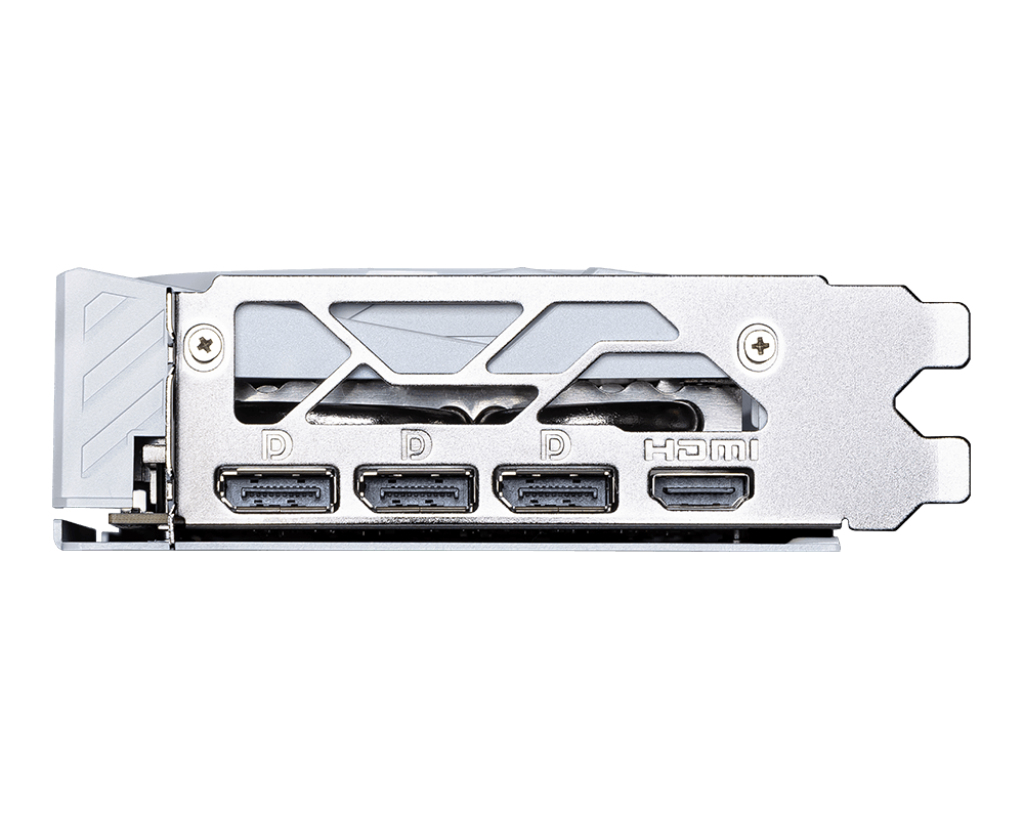

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1b |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| HDCP | Yes |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Overclocked (OC) edition | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | MSI TORX Fan 4.0 |
| Number of fans | 3 fan(s) |
| Fan diameter | 12 cm |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | White |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 600 W |
| Power consumption (typical) | 180 W |
| Supplementary power connectors | 1x 16-pin |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 839 g |
| Length | 300 mm |
| Depth | 44 mm |
| Height | 125 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.34 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|

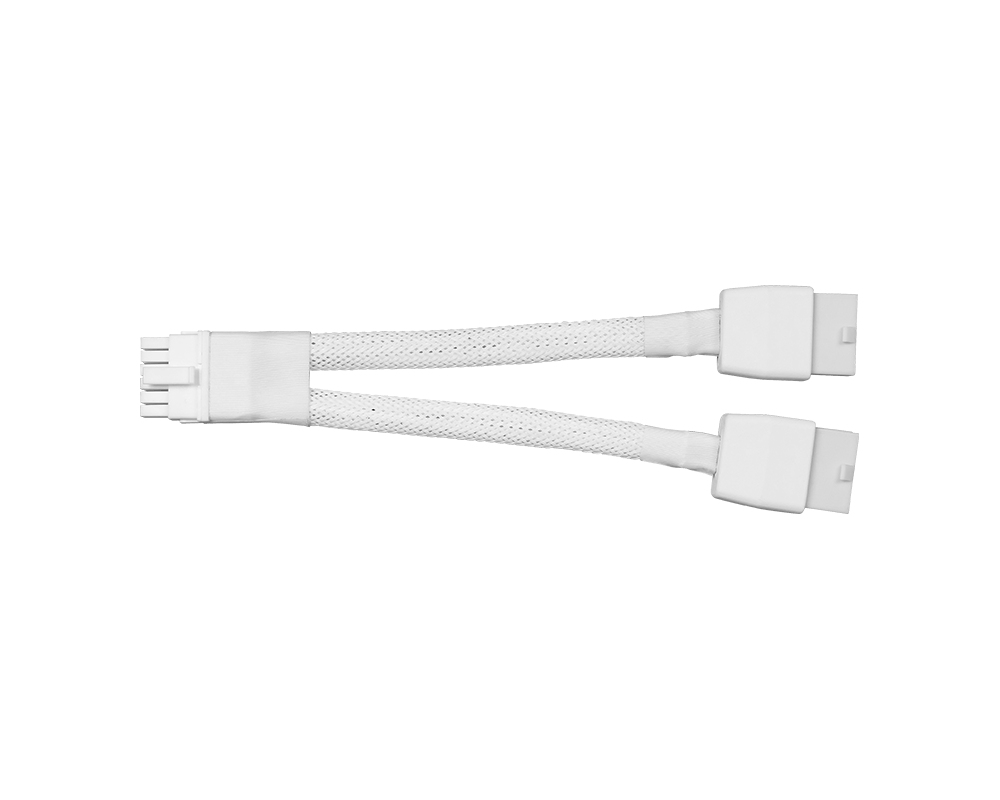

| Cables included | Power |
