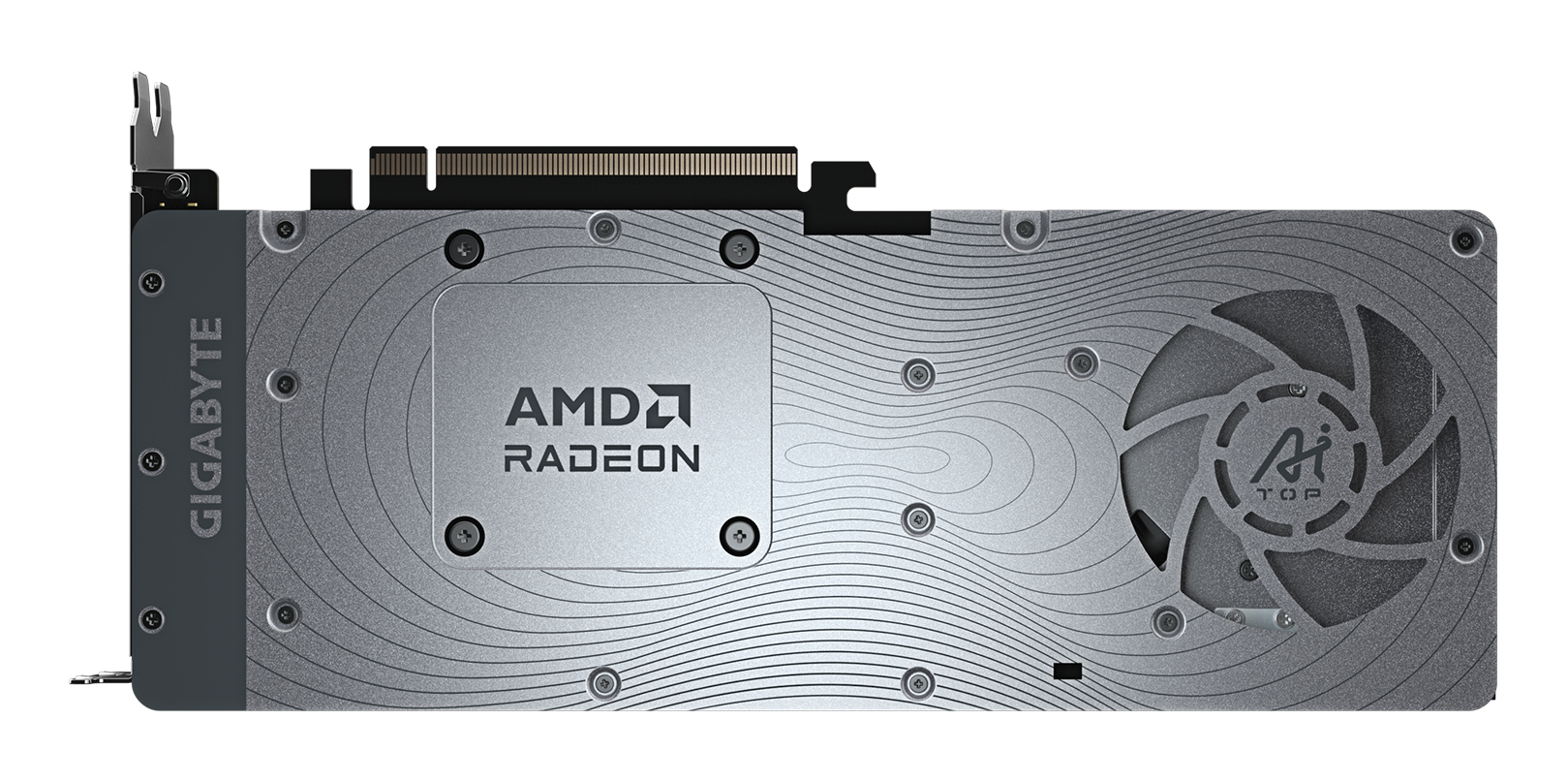

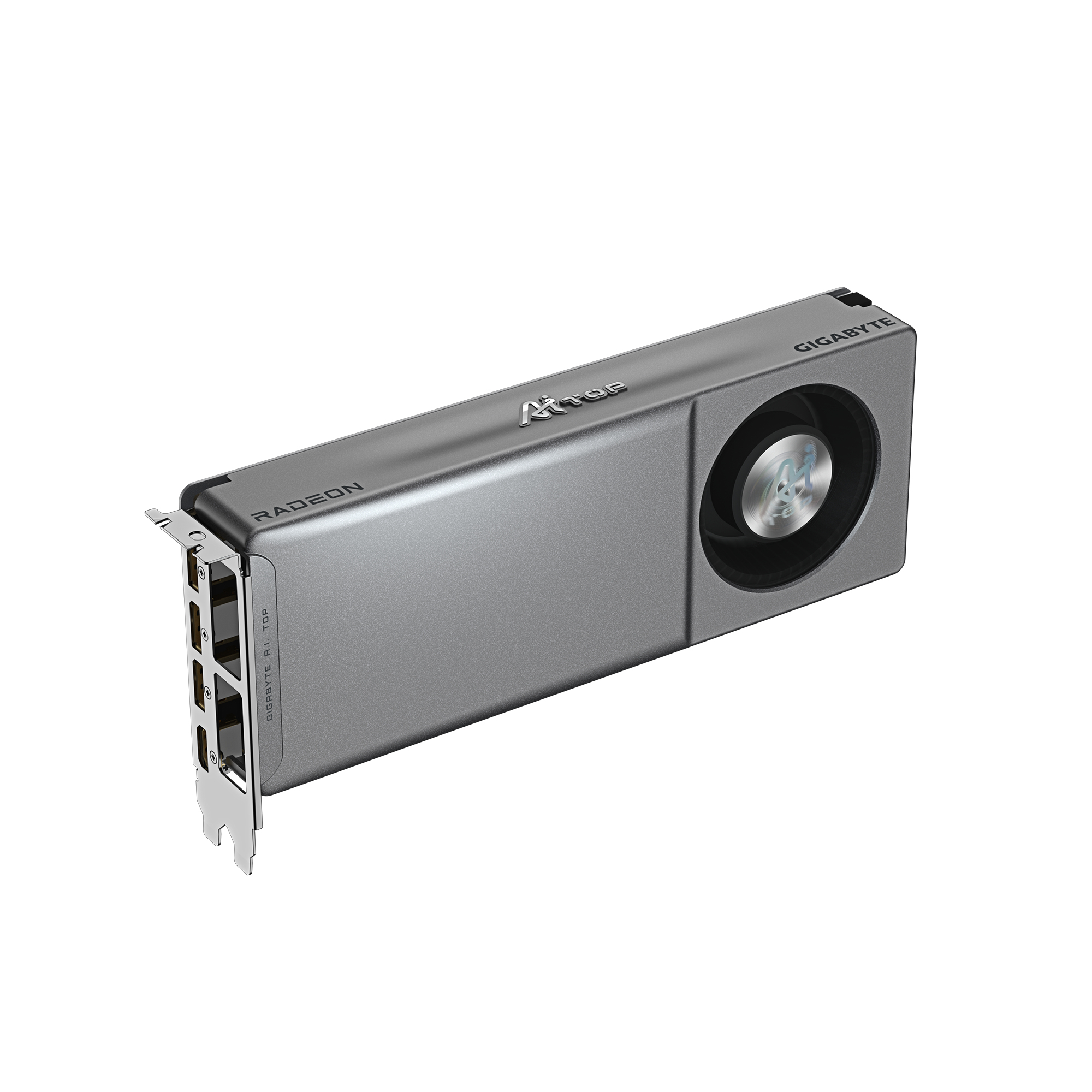

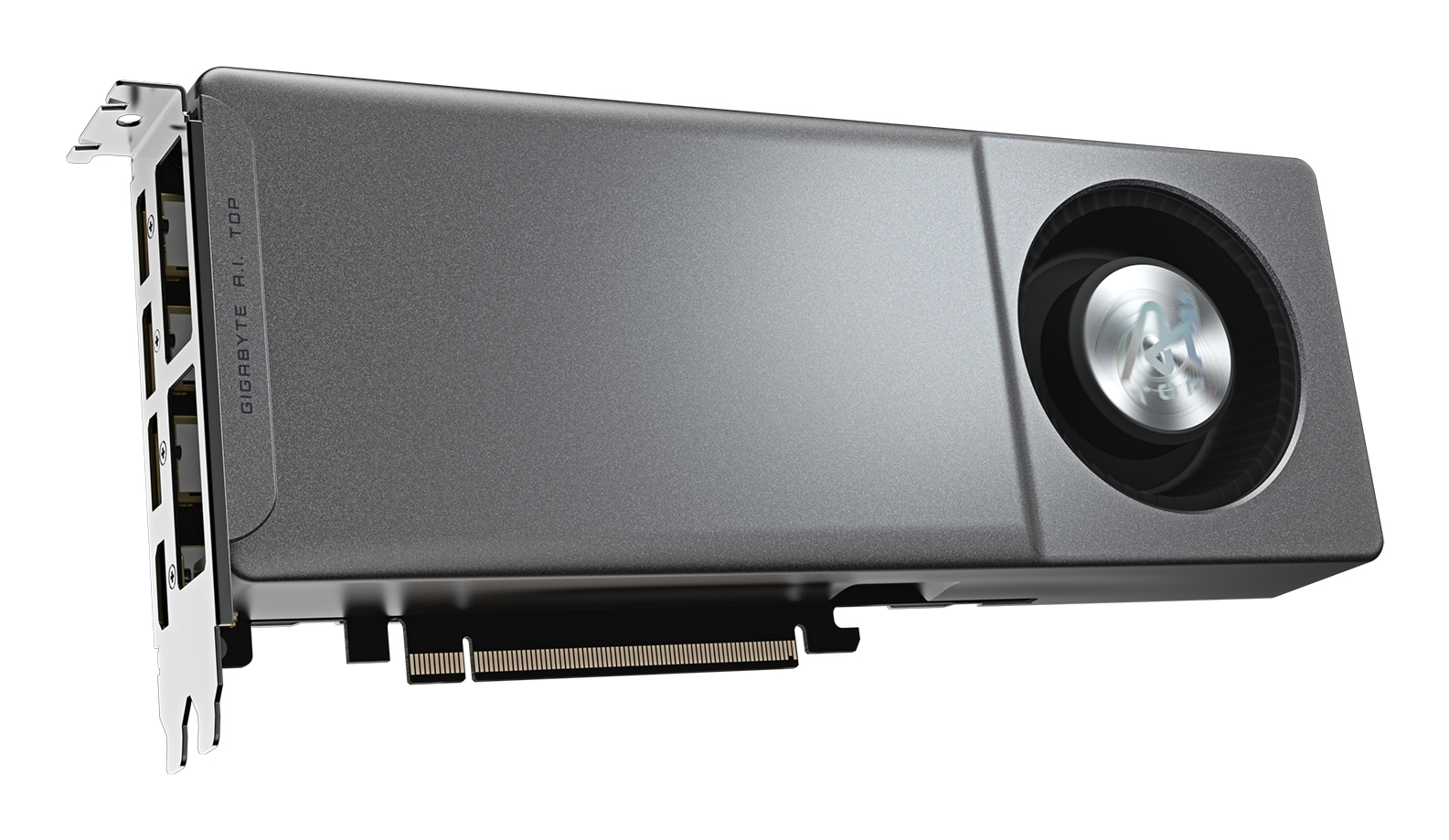

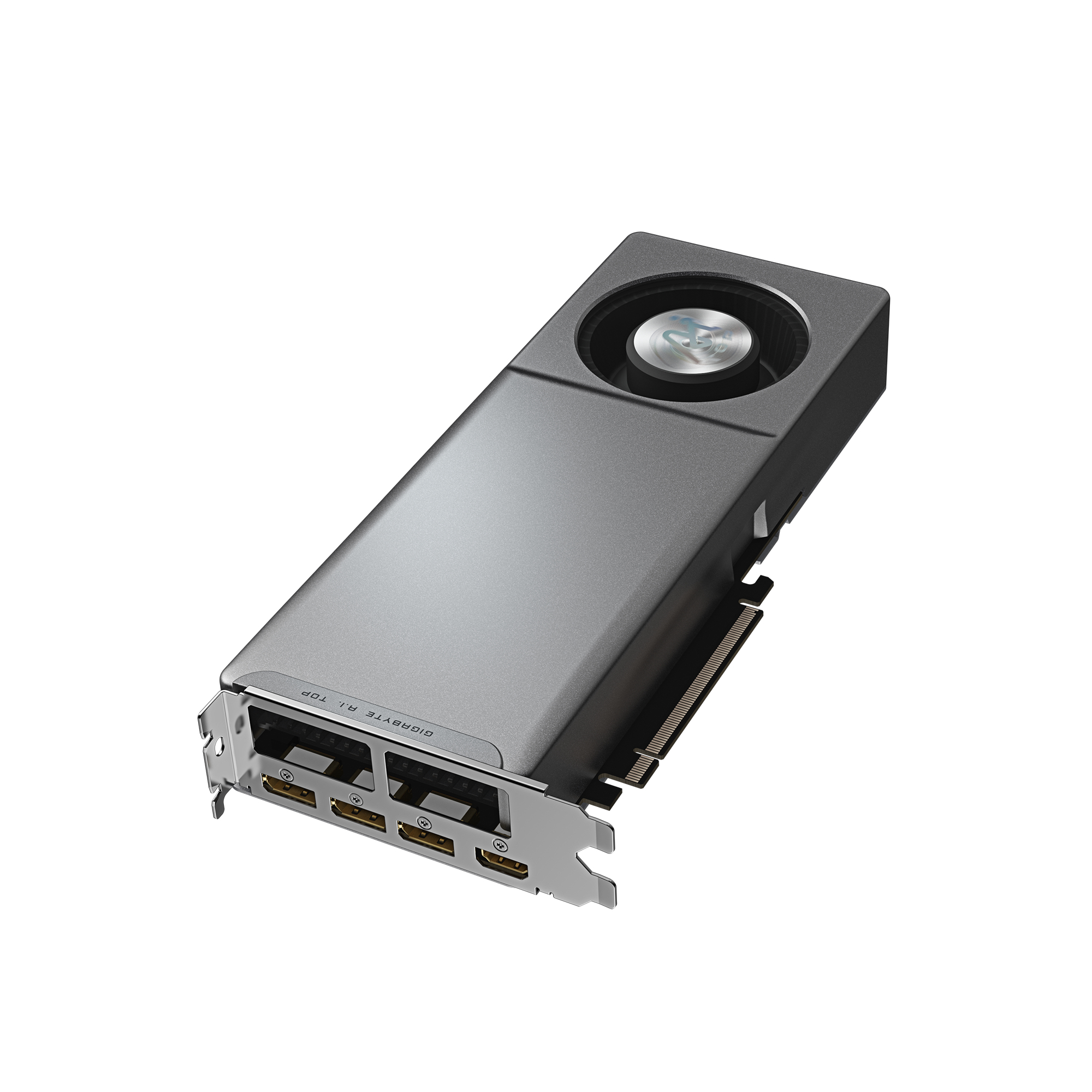

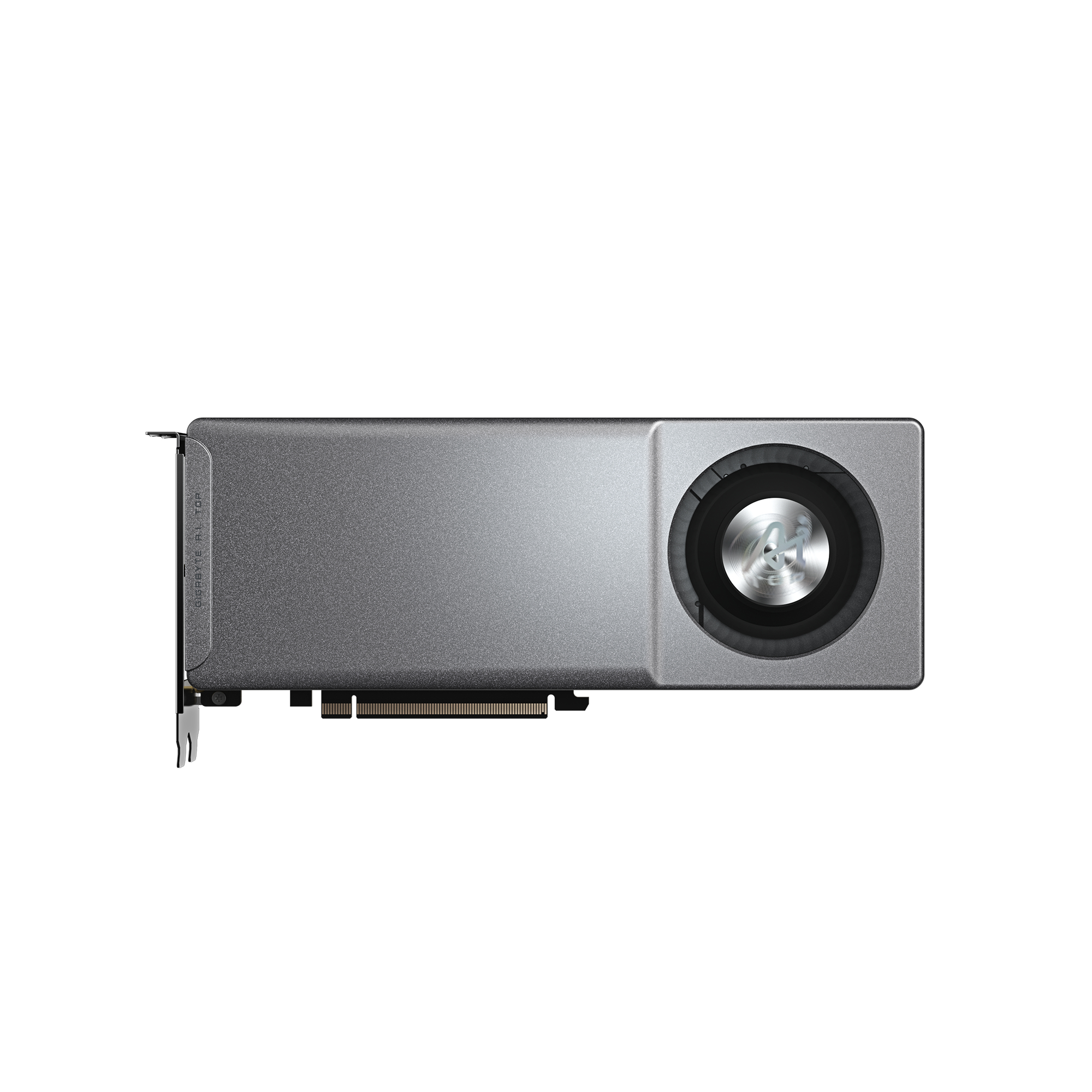

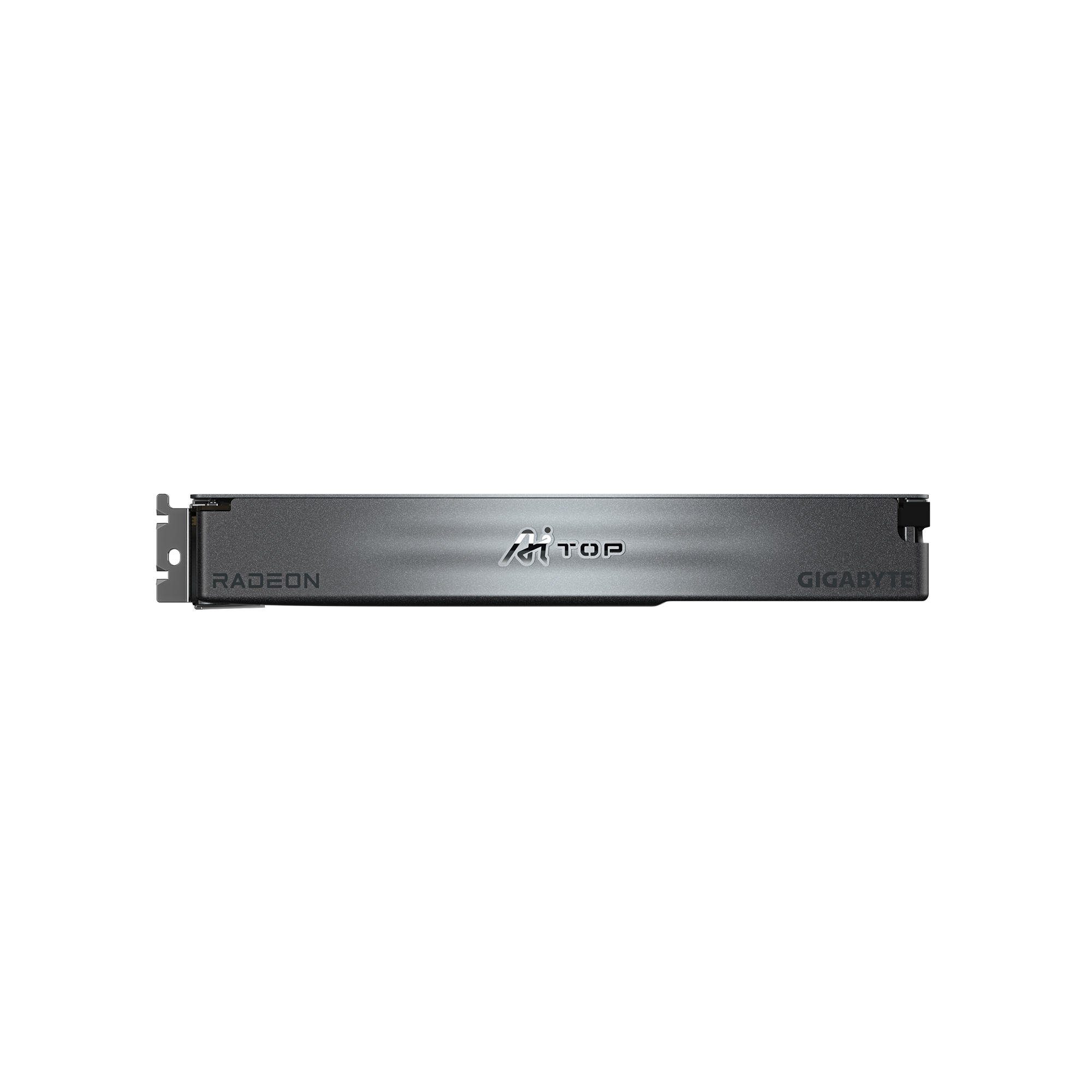

Radeon AI PRO R9700 AI TOP 32G
Model Radeon AI PRO R9700 AI TOP 32GPart no. GV-R9700AI TOP-32GDEAN 889523052266
47 specifications Checked today
- TypeFull-Height/Half-Length (FH/HL)
- Weight1.49 kg
- ColourGrey
- Graphics processor familyAMD
- Discrete graphics card memory32 GB
- Interface typePCI Express x16 5.0
Overview
- Type
- Full-Height/Half-Length (FH/HL)
- Weight
- 1.49 kg
- Colour
- Grey
- Graphics processor family
- AMD
- Discrete graphics card memory
- 32 GB
- Interface type
- PCI Express x16 5.0
- Brand
- GIGABYTE
- Category
- GPU
- Model
- Radeon AI PRO R9700 AI TOP 32G
- Part numbers
- GV-R9700AI TOP-32GD, GV-R9700AI TOP-32GD 1.1
- EAN / UPC
- 889523052266, 4719331356613
- Also known as
- GIGABYTE Radeon AI PRO R9700 AI TOP 32G Graphics Card
Specifications
47 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon AI PRO R9700 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | No |
| Processor frequency | 2350 MHz |
| Processor boost clock speed | 2920 MHz |
| AI accelerators | 128 |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
| Ray accelerators | 64 |
| Stream processors | 4096 |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 32 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Memory clock speed | 20000 MHz |
| Memory bandwidth (max) | 640 GB/s |

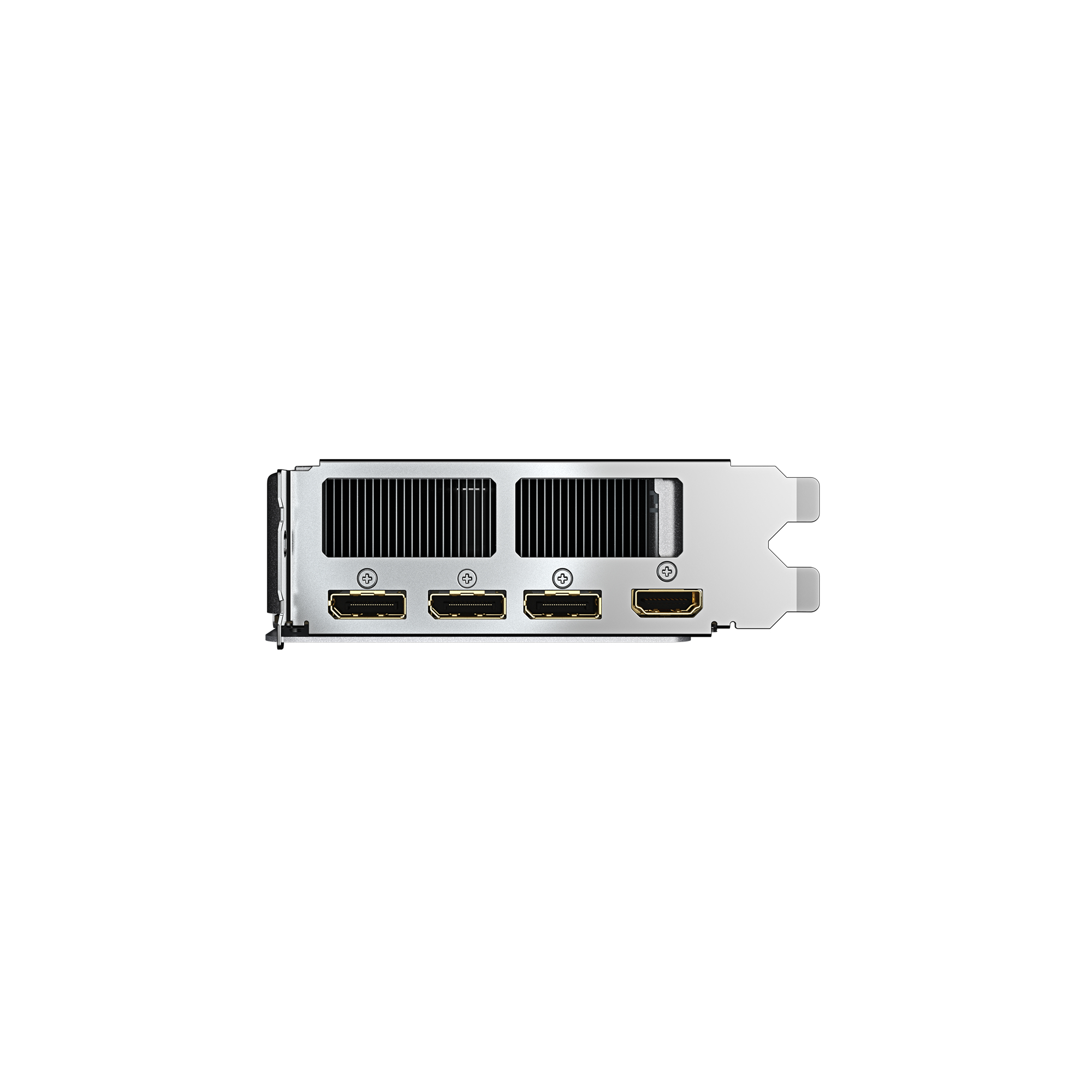

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1a |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| Warranty period | 3 year(s) |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | Gigabyte Turbo Fan |
| Number of fans | 1 fan(s) |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of slots | 2 |
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 750 W |
| Supplementary power connectors | 1x 16-pin |
| Thermal Design Power (TDP) | 238 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.49 kg |
| Length | 267 mm |
| Depth | 40 mm |
| Height | 111 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 182.5 mm |
| Package depth | 354 mm |
| Package height | 75 mm |
| Package weight | 1.97 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
