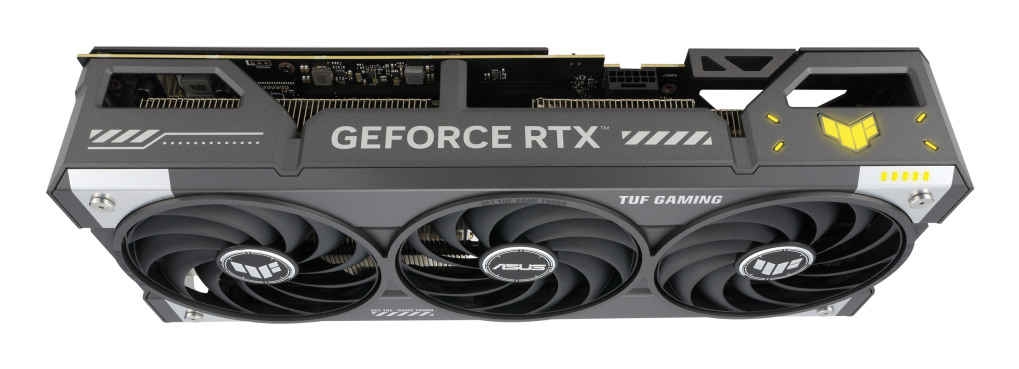

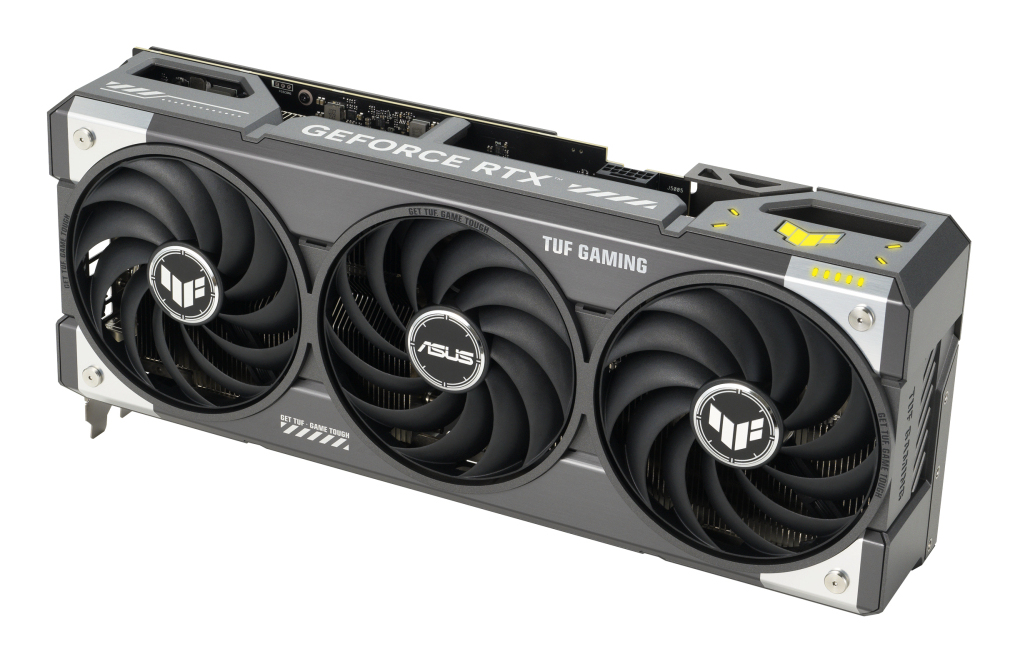

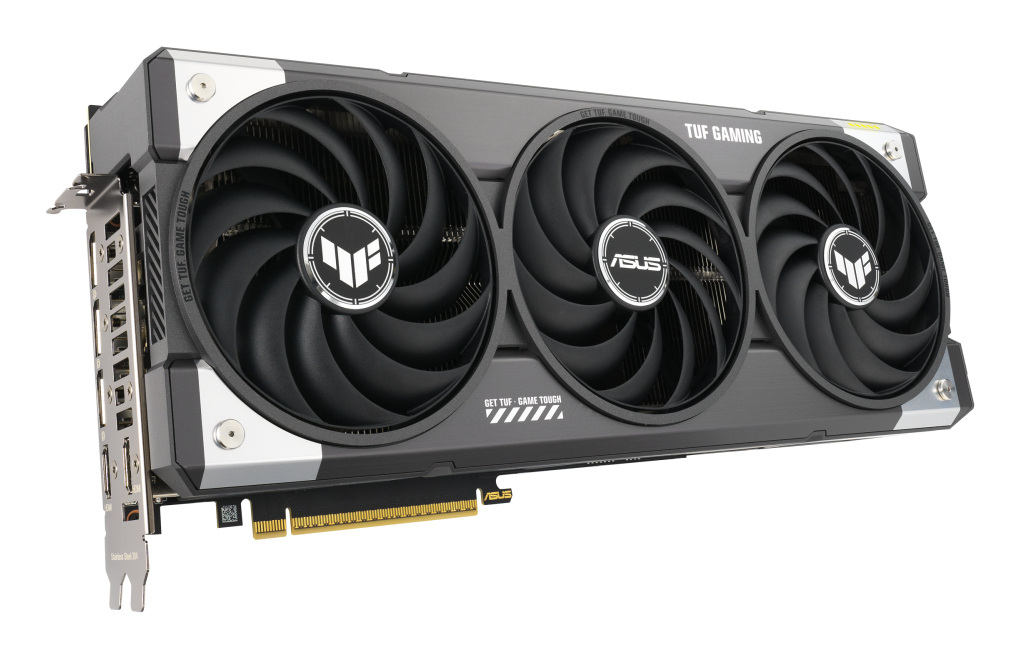

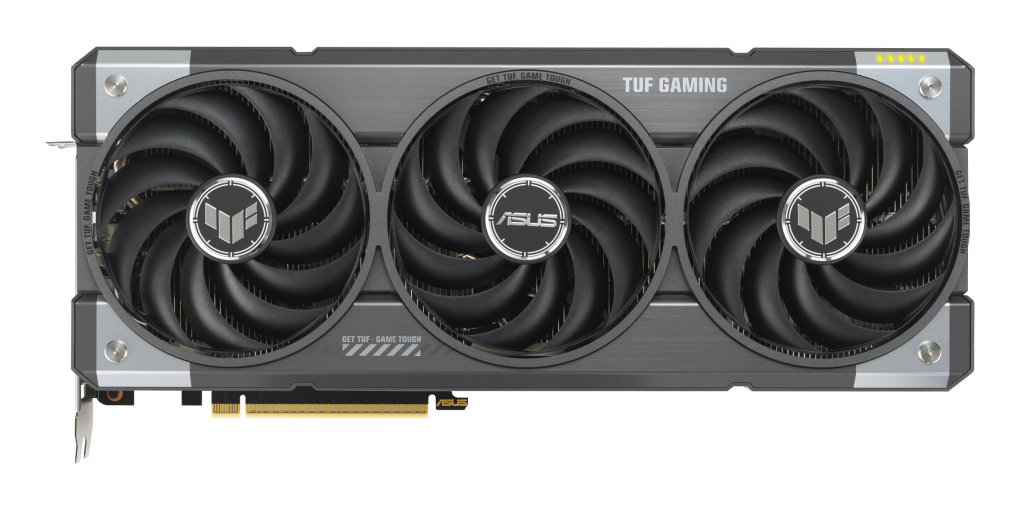

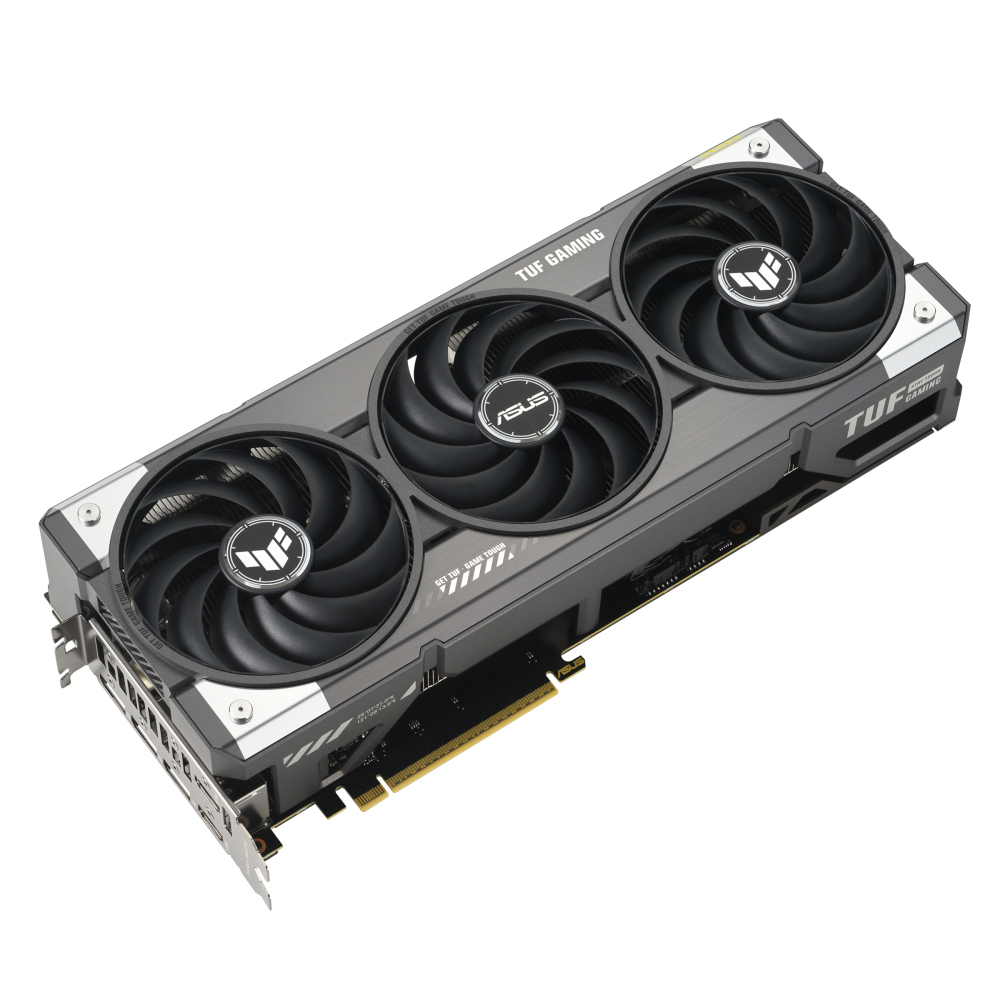

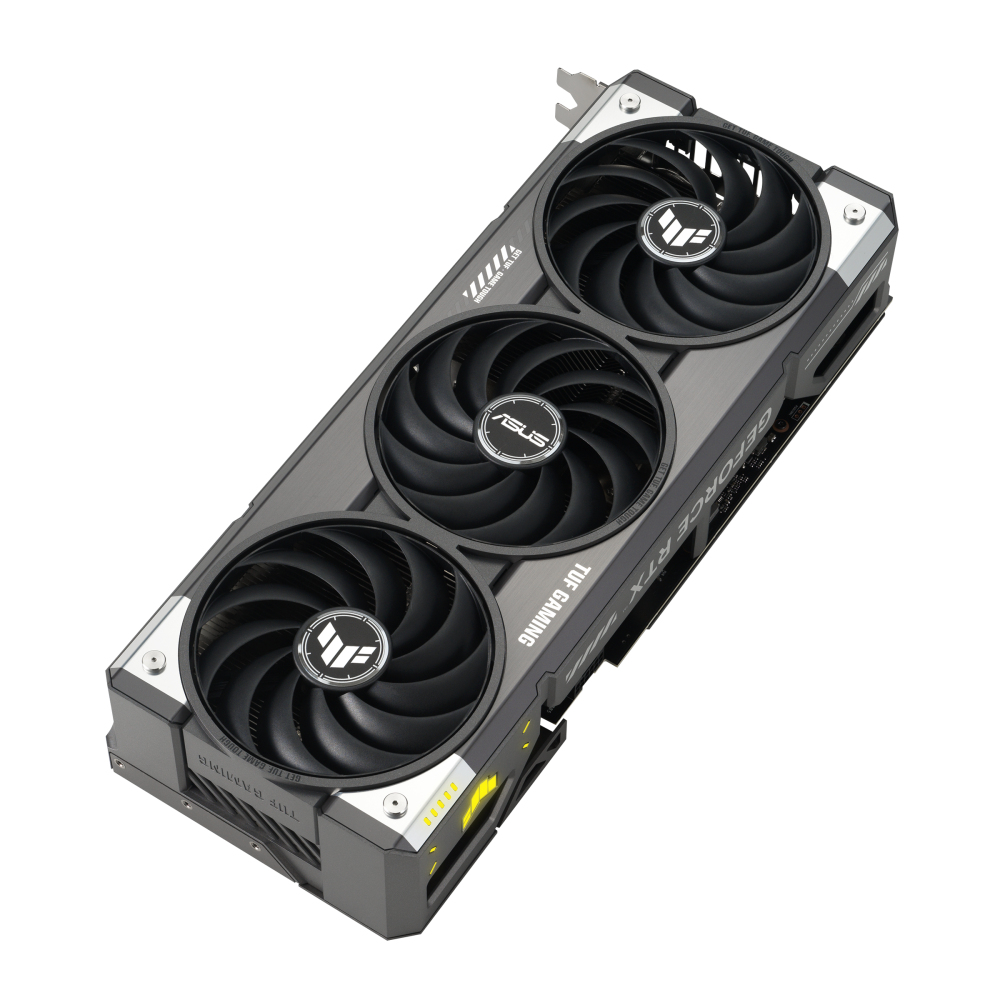

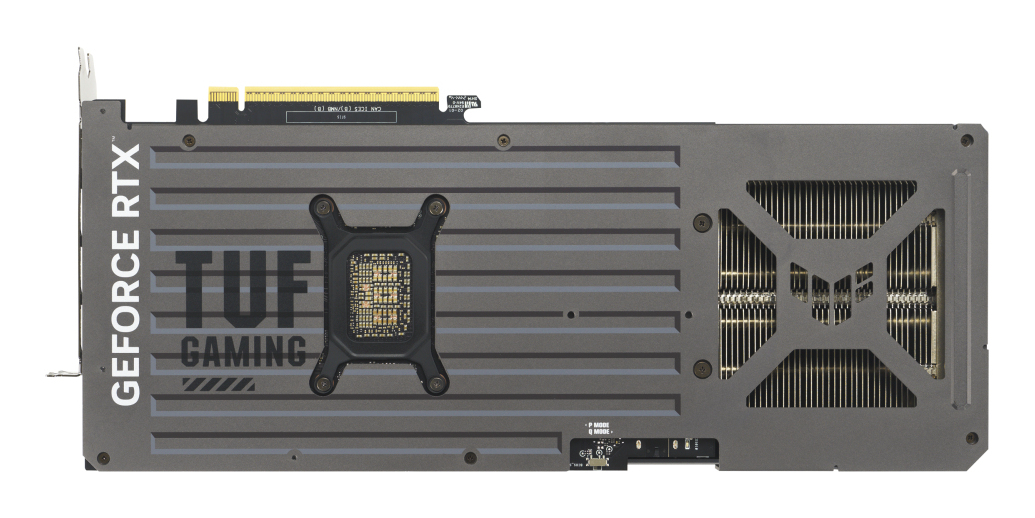

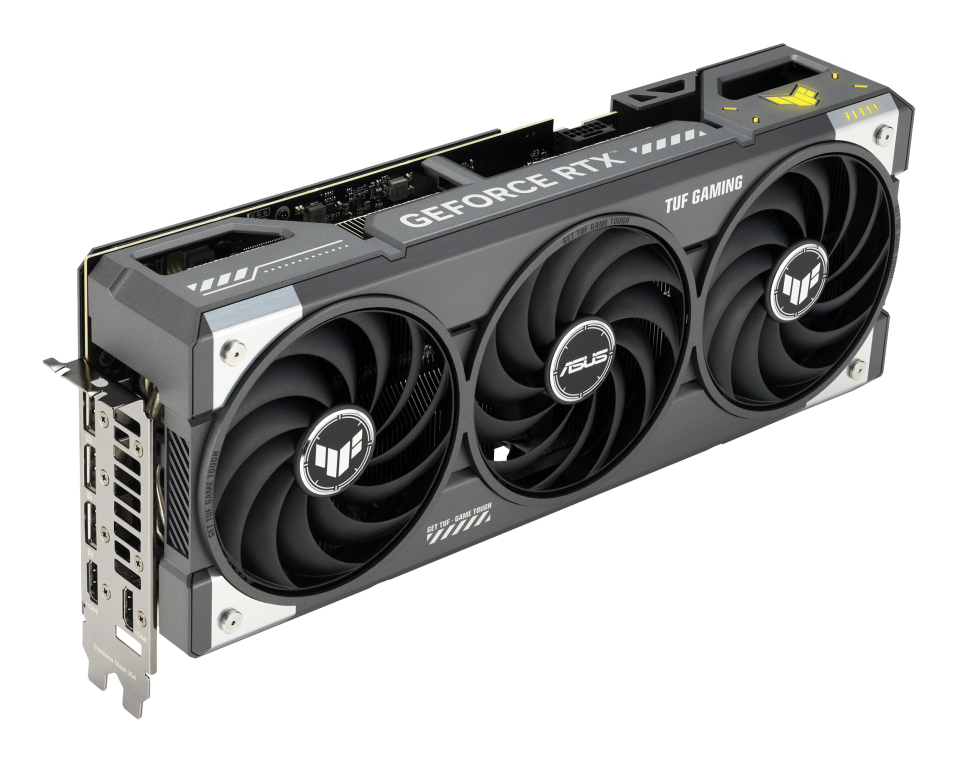

GeForce RTX 5070 Ti 16GB GDDR7 OC Edition
Model GeForce RTX 5070 Ti 16GB GDDR7 OC EditionPart no. 90YV0MD0-M0AA00EAN 4711387878071
48 specifications Checked today
- TypeFull-Height/Full-Length (FH/FL)
- Weight1.62 kg
- ColourGrey
- Graphics processor familyNVIDIA
- Discrete graphics card memory16 GB
- Interface typePCI Express 5.0
Overview
- Type
- Full-Height/Full-Length (FH/FL)
- Weight
- 1.62 kg
- Colour
- Grey
- Graphics processor family
- NVIDIA
- Discrete graphics card memory
- 16 GB
- Interface type
- PCI Express 5.0
- Brand
- ASUS
- Category
- GPU
- Model
- GeForce RTX 5070 Ti 16GB GDDR7 OC Edition
- Part number
- 90YV0MD0-M0AA00
- EAN / UPC
- 4711387878071
- Also known as
- ASUS TUF Gaming GeForce RTX 5070 Ti 16GB GDDR7 OC Edition NVIDIA
Specifications
48 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5070 Ti |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 8960 |
| Processor boost clock speed | 2588 MHz |
| Processor frequency (OC mode) | 2160 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
Memory
| Specification | Value |
|---|---|
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Data transfer rate | 28 Gbit/s |

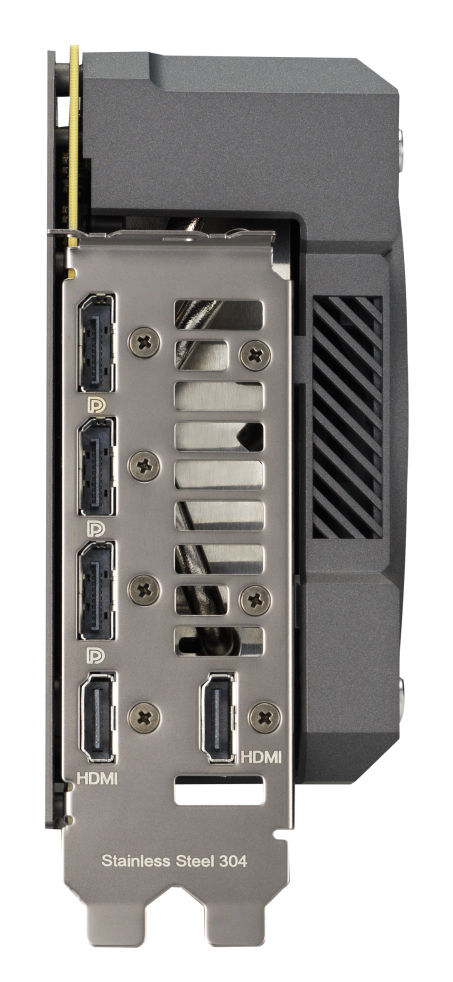

Ports & interfaces
| Specification | Value |
|---|---|
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Thunderbolt 3 ports quantity | 0 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.1b |
| DisplayPort version | 2.1b |
| Mini DisplayPorts quantity | 0 |
Performance
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| NVIDIA Ansel | Yes |
| NPU performance up to | 1406 TOPs |
| Overclocked (OC) edition | Yes |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 3.125 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | Grey |
Power
| Specification | Value |
|---|---|
| Minimum system power supply | 850 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.62 kg |
| Length | 329 mm |
| Depth | 62.5 mm |
| Height | 140 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
