AEG FHHS23M12 (EPB43509BM+HE604070XB+TR1LFV) Specs

Overview

Brand: AEG
Category: Cooking Appliance Set
Model: FHHS23M12 (EPB43509BM+HE604070XB+TR1LFV)
Part number: 801418533 (940321397+949595066+BAZ)
EAN / UPC: 7332543934980
Also known as: AEG FHHS23M12 (EPB43509BM+HE604070XB+TR1LFV) cooking appliance set Ceramic hob Electric

86 specifications in 3 groups

Specification	Value

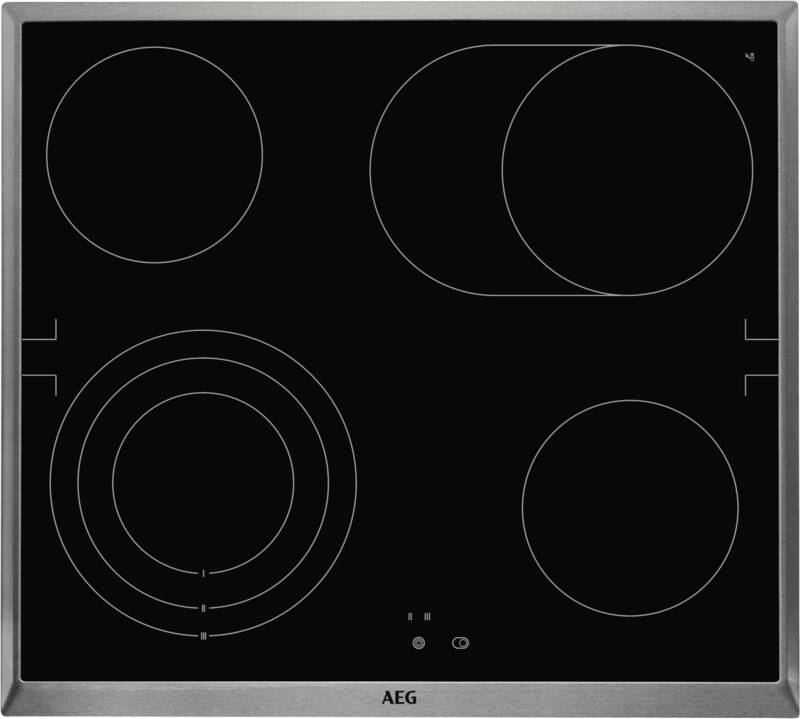

Hob type	Ceramic hob
Number of cooking zones	4 zone(s)
Top surface type	Glass-ceramic
Hob colour	Black
Number of electric cooking zones	4 zone(s)
Cooking zone 1 type	Large
Cooking zone 1 shape	Round
Cooking zone 1 position	Left front
Cooking zone 1 diameter	210 mm
Cooking zone 1 power	2300 W
Cooking zone 2 type	Regular
Cooking zone 2 shape	Round
Cooking zone 2 position	Left front
Cooking zone 2 diameter	145 mm
Cooking zone 2 power	1200 W
Cooking zone 3 type	Large
Cooking zone 3 shape	Oval
Cooking zone 3 position	Right rear
Cooking zone 3 size (W x D)	170 x 265 mm
Cooking zone 3 power	2400 W
Cooking zone 4 type	Regular
Cooking zone 4 shape	Round
Cooking zone 4 position	Right front
Cooking zone 4 diameter	145 mm
Cooking zone 4 power	1200 W
Hob control type	Touch
Hob control position	Top / Front
Residual heat indicator	Yes
Easy to clean	Yes
Frame type	Bevel
Frame form	Full trim
Frame colour	Stainless steel
Hob connected load (electric)	7100 W
Hob input voltage	220 - 240 V
Hob width	57.6 cm
Hob depth	51.6 cm
Hob height	3.8 cm
Hob installation compartment width	56 cm
Hob installation compartment depth	49 cm
Hob installation compartment height	3.8 cm

Specification	Value

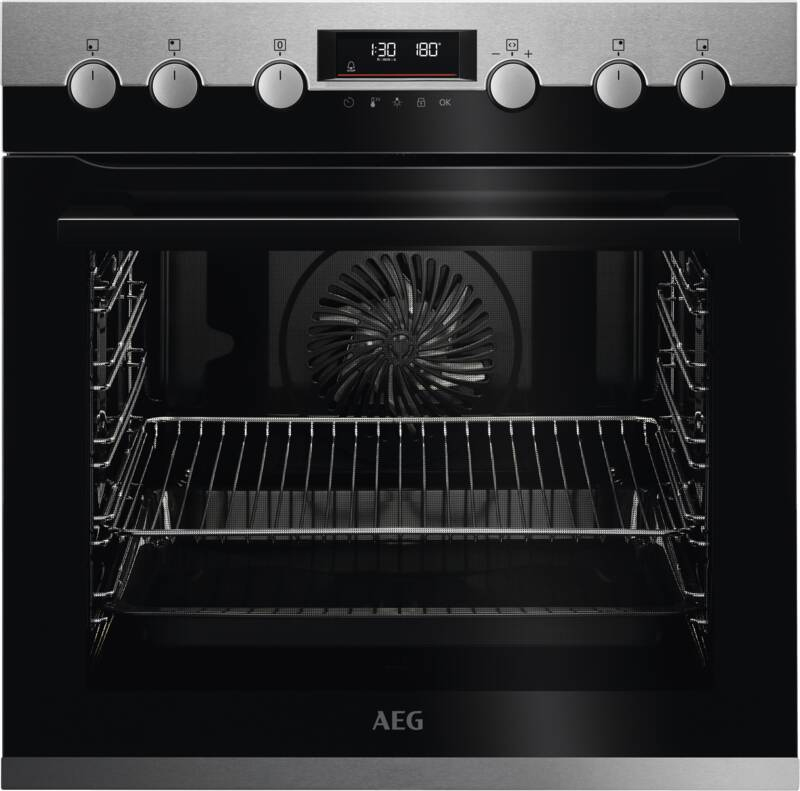

Oven type	Electric
Oven net capacity	71 L
Oven colour	Stainless steel/Black
Oven control type	Rotary
Oven display	Yes
Oven display type	LED
Integrated clock	Yes
Clock type	Electronic
Timer	Yes
Timer type	Digital
Self-cleaning	Yes
Cleaning type	Pyrolytic
Cleaning technology	EasyClean
Temperature (min)	30 °C
Temperature (max)	300 °C

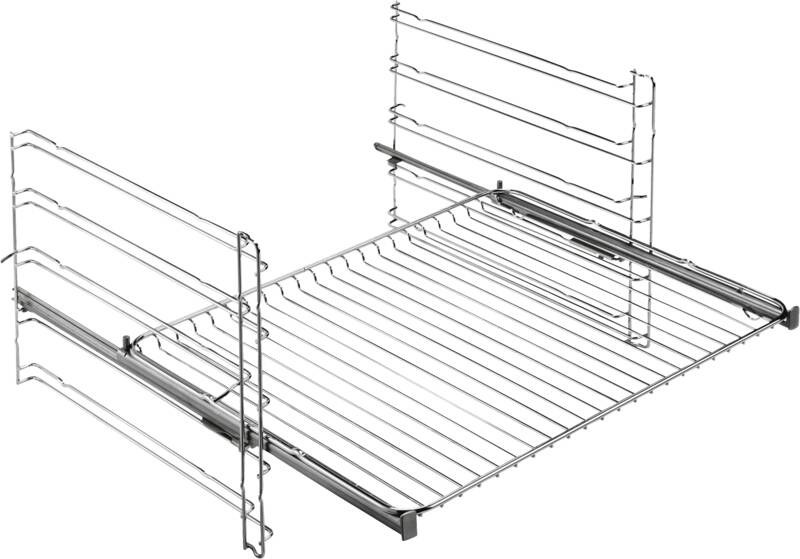

Number of shelves	2 shelves
Number of shelf positions	5
Door hinge	Down
Cool door	Yes
Interior light	Yes
Lamp type	Halogen
Lamps quantity	1 lamp(s)
Bulb power	40 W
Child lock	Yes
Energy efficiency class (oven)	A+
Energy efficiency scale (oven)	A+++ to D
Energy consumption (forced convection)	0.69 kWh
Energy consumption (conventional)	1.09 kWh
Connected load	10850 W
Oven input voltage	230 V
Oven current	16 A
Fast heat	Yes
Grill	Yes
Grill power	2300 W
Convection cooking	Yes
Conventional cooking	Yes
Oven width	59.5 cm
Oven depth	56.7 cm
Oven height	59.4 cm
Oven weight	33.5 kg
Oven installation compartment width	56 cm
Oven installation compartment depth	55 cm
Oven installation compartment height	60 cm
Oven package weight	34.5 kg
