ASUS · Motherboard

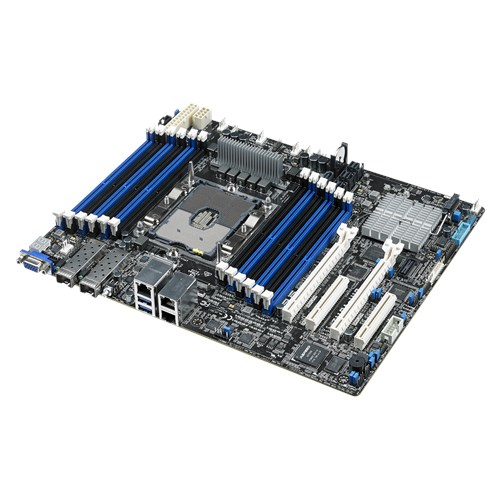

ASUS Z11PA-U12 Intel® C621 ATX price in United Kingdom

Model Z11PA-U12MPN 90SB0660-M0UAY0MPN 90SB0660-M0UAY1EAN 889349812983EAN 4712900812985

Weight970 g
Processor manufacturerIntel
Supported memory typesDDR4-SDRAM
Supported storage drive interfacesSerial Attached SCSI (SAS)

Lowest price incl. delivery

£14,112.99

at Back to the OfficeFree deliveryIn stock

1 store
1 in stock
1 with free delivery
Checked 6 Oct 2026, 05:40 UTC

Ad · prices and stock as last reported by the store; the store's checkout is what counts.

Full specifications and side-by-side comparison

Prices in United Kingdom

1 store · prices in GBP · updated 6 Oct 2026, 05:40 UTC

Lowest price£14,112.99at Back to the Office · free shippingGo to Back to the Office

Price range across 1 offer

Every store asks the same price.

1 of 1 stores in stock
1 with free shipping
Checked 6 Oct 2026, 05:40 UTC

Back to the OfficeLowest priceASUS Z11PA-U12 Intel® C621 LGA 3647 (Socket P) ATX In stockFree shipping
£14,112.99incl. free shipping
Go to store : Back to the Office (opens in a new tab)

Ad: we may earn a commission when you buy through these links; it never changes the order, which is by total price only. Prices and stock are shown as each store states them, as of 6 Oct 2026, 05:40 UTC, and can change at any time. Taxes are included only where the store includes them.

Price history in United Kingdom

Price history is being collected. After 14 days of prices we will show whether today's price is good.

Product details

Identification

Brand: ASUS
Product: Z11PA-U12 Intel® C621 ATX
Full name: ASUS Z11PA-U12 Intel® C621 ATX
Manufacturer part number: 90SB0660-M0UAY0, 90SB0660-M0UAY1
EAN / UPC: 889349812983, 4712900812985
Category: Motherboard

50 specifications from the manufacturer's data sheet

Processor

Processor manufacturer	Intel
System bus rate	10.4 GT/s

Memory

Supported memory types	DDR4-SDRAM
Memory channels	Hexa-channel
Supported memory clock speeds	2400,2666 MHz
Maximum internal memory	1.53 TB
Maximum RDIMM memory	384 GB

Storage controllers

Supported storage drive interfaces	Serial Attached SCSI (SAS)
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Parallel processing technology support	Not supported
Discrete graphics support	Yes
On-board graphics card memory	64 MB
On-board graphics card model	Aspeed AST2500

Internal I/O

Number of SATA III connectors	13
ATX Power connector (24-pin)	Yes
Power fan connector	Yes
EPS power connector (8-pin)	Yes
Integrated SAS ports	2
Serial port headers	1
TPM connector	Yes

Rear panel I/O ports

USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	3
PS/2 ports quantity	0
VGA (D-Sub) ports quantity	1

Network

Ethernet LAN	Yes
LAN controller	Intel® I210-AT
Wi-Fi	No

Features

Component for	Server
Motherboard form factor	ATX
Motherboard chipset	Intel® C621

Expansion slots

PCI Express x8 (Gen 2.x) slots	0
PCI Express x8 (Gen 3.x) slots	2
PCI Express x16 (Gen 2.x) slots	0
PCI Express x16 (Gen 3.x) slots	2

Operational conditions

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90%

Packaging data

Package weight	1.62 kg

Logistics data

Harmonized System (HS) code	84733020

Weight & dimensions

Width	305 mm

Other features

Supported DIMM module capacities	4GB, 8GB, 16GB, 32GB, 64GB
Maximum UDIMM memory	768 GB
Supported LRDIMM module capacity	32GB, 64GB
Supported LRDIMM clock speeds	2400,2666 MHz
Supported RDIMM clock speeds	2400,2666 MHz
Supported RDIMM module capacity	4GB, 8GB, 16GB, 32GB
Weight	970 g
Number of DIMM slots	12
Number of processors supported	1
